Crafted with a core structure of 6 strands, each composed of 7 high-quality steel wires, this steel wire rope balances strength, flexibility, and durability to meet the rigorous standards of diverse industries. Whether used in construction sites, mining operations, or agricultural machinery, the 6×7 Steel Wire Rope stands out for its consistent performance and ability to withstand harsh working conditions. Unlike bulkier alternatives, its streamlined design ensures easy handling without compromising on load capacity, making it a preferred choice for professionals seeking a versatile and trustworthy industrial steel wire rope.

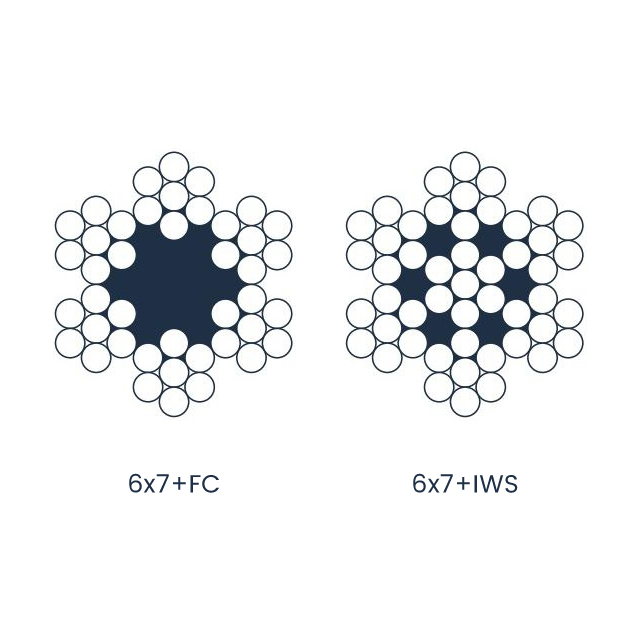

| Specification: DIN/EN/ISO/JISG/BS 6x7+FC, 6x7+WSC(7x7) |
||||||
| Nominal Diameter (mm) |
Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | ||||
| 1770 | 1960 | |||||
| Minimum Breaking Strength(kn) | ||||||
| FC | IWRC | FC | IWRC | FC | IWRC | |
| 1.2 | 0.514 | 0.566 | 0.85 | 0.91 | 0.94 | 1.01 |
| 1.5 | 0.8 | 0.88 | 1.32 | 1.43 | 1.46 | 1.58 |
| 1.8 | 0.94 | 1.27 | 1.9 | 2.06 | 2.1 | 2.28 |
| 2 | 1.43 | 1.57 | 2.35 | 2.54 | 2.6 | 2.81 |
| 2.5 | 2.23 | 2.46 | 3.67 | 3.97 | 4.06 | 4.4 |
| 3 | 3.22 | 3.54 | 5.29 | 5.71 | 5.86 | 6.32 |
| 4 | 5.72 | 6.29 | 9.41 | 10.2 | 10.4 | 11.3 |
| 5 | 8.94 | 9.83 | 14.7 | 15.9 | 16.3 | 17.6 |
| 6 | 12.9 | 14.2 | 21.1 | 22.9 | 23.4 | 25.4 |
| 7 | 17.5 | 19.3 | 28.8 | 31.1 | 31.9 | 34.4 |
| 8 | 22.9 | 25.2 | 37.6 | 40.6 | 41.6 | 45 |
| 9 | 28.9 | 31.8 | 47.6 | 51.4 | 一 | 一 |
| 10 | 35.7 | 39.3 | 58.8 | 63.5 | 一 | 一 |
| 11 | 43.2 | 47.5 | 71.1 | 76.8 | 一 | 一 |
| 12 | 51.5 | 56.7 | 84.7 | 91.5 | 一 | 一 |
| 13 | 60.4 | 66.4 | 99.4 | 107 | 一 | 一 |
| 14 | 70.1 | 77.1 | 115 | 124 | 一 | 一 |
| Note: Stainless Steel Wire Rope is available. | ||||||
● Standard: GB/T20118-2017
● For various kind of cable car, belt cinveyer, cable way drawing and slope well winching.
At the heart of the 6×7 Steel Wire Rope is its meticulously crafted structure. The 6-strand, 7-wire configuration creates a stable and resilient framework that distributes tension evenly across the entire rope. This design minimizes the risk of strand deformation or breakage, even under sudden or heavy loads. Each steel wire is manufactured from high-grade alloy steel, ensuring uniform thickness and tensile strength that surpasses standard industrial requirements. The tight twisting of strands enhances the rope’s structural integrity, making it resistant to kinking and unraveling—key advantages that set this high-strength steel wire rope apart from inferior products.
One of the most notable features of the 6×7 Steel Wire Rope is its impressive strength-to-weight ratio. By utilizing premium, lightweight steel materials without sacrificing durability, this rope delivers powerful load-bearing capabilities while remaining easy to transport and install. This balance is particularly valuable in applications where weight constraints exist, such as mobile lifting equipment or temporary structures. Whether lifting heavy machinery or pulling large components, the 6×7 Steel Wire Rope provides the muscle needed without adding unnecessary bulk, optimizing efficiency in every operation.
Despite its robust construction, the 6×7 Steel Wire Rope offers surprising flexibility, allowing for smooth winding around pulleys, winches, and drums. This flexibility reduces friction during operation, minimizing wear on both the rope and the equipment it interacts with. It also simplifies installation and maneuvering in tight spaces, such as confined construction sites or underground mining tunnels. The rope’s ability to bend without losing structural integrity makes it ideal for applications requiring frequent movement or directional changes, solidifying its reputation as a flexible steel wire rope that doesn’t compromise on performance.
The 6×7 Steel Wire Rope is treated with a protective coating that shields it from corrosion, rust, and environmental damage. This coating is specially formulated to withstand exposure to moisture, chemicals, and extreme temperatures—common challenges in outdoor or industrial settings. Whether used in rainy construction zones, humid agricultural fields, or coastal environments, the rope maintains its structural integrity and performance over time. This corrosion resistance extends the rope’s service life, reducing replacement costs and ensuring long-term reliability for users relying on a durable steel wire rope.
In the construction industry, the 6×7 Steel Wire Rope is a workhorse for lifting and positioning heavy materials. It is commonly used with cranes, hoists, and scaffolding systems to move steel beams, concrete blocks, and construction equipment safely. Its strength and flexibility make it ideal for high-rise building projects, bridge construction, and temporary lifting operations where precision and reliability are non-negotiable. Contractors trust this construction steel wire rope to handle critical loads, ensuring projects stay on schedule and within safety standards.
Mining and quarry environments demand equipment that can withstand abrasive materials, constant tension, and harsh conditions—and the 6×7 Steel Wire Rope rises to the challenge. It is widely used in mining winches, conveyor systems, and ore extraction equipment to pull and lift heavy loads of minerals, rocks, and debris. Its corrosion resistance protects against moisture and chemical exposure in underground mines, while its robust structure resists wear from contact with rough surfaces. As a mining steel wire rope, it delivers consistent performance in one of the most demanding industrial sectors.
Farmers and agricultural professionals rely on the 6×7 Steel Wire Rope for a range of tasks, from operating hay balers and grain elevators to pulling farm implements. Its flexibility allows for smooth integration with agricultural machinery, while its strength handles the strain of lifting and hauling heavy crops or equipment. The rope’s corrosion resistance is particularly valuable in outdoor agricultural settings, where exposure to rain, mud, and fertilizers is unavoidable. This agricultural steel wire rope ensures that farming operations run efficiently, even in challenging weather conditions.
Beyond specialized sectors, the 6×7 Steel Wire Rope is a versatile solution for general industrial lifting and pulling needs. It is used in warehouses for loading and unloading cargo, in manufacturing plants for moving machinery components, and in logistics for securing heavy shipments. Its adaptability to different equipment and environments makes it a staple in industrial settings, where downtime is costly and reliability is essential. As a general-purpose steel wire rope, it offers a cost-effective and high-performance option for businesses of all sizes.
The 6×7 Steel Wire Rope is engineered with high-grade alloy steel wires and a balanced 6×7 strand configuration, which distributes tension evenly and enhances load-bearing capacity. Its robust structure and exceptional strength-to-weight ratio allow it to handle heavy loads without compromising on flexibility or durability, making it perfect for heavy-duty lifting and pulling tasks across industries.
Yes, the 6×7 Steel Wire Rope features a protective corrosion-resistant coating that shields it from moisture, rust, and environmental damage. This makes it fully suitable for outdoor use, whether in construction sites, agricultural fields, or coastal areas. Its weather-resistant properties ensure consistent performance even in rain, snow, or high-humidity conditions.
Proper installation starts with matching the 6×7 Steel Wire Rope to the intended load and equipment specifications. Ensure the rope is compatible with pulleys, winches, or hooks of the correct size to avoid excessive friction. Inspect the rope for any signs of damage before installation, and follow manufacturer guidelines for tensioning and securing. Regularly check connections during use to maintain safety and performance.
Absolutely. The 6×7 Steel Wire Rope requires minimal maintenance to retain its performance. Regular visual inspections for wear, fraying, or corrosion are recommended, along with occasional lubrication to reduce friction and extend service life. Avoid exposing the rope to sharp edges or excessive heat, and store it in a dry, clean area when not in use. Following these simple steps ensures the rope remains reliable for years.
The 6×7 Steel Wire Rope is highly versatile and benefits a wide range of industries, including construction, mining, agriculture, logistics, and general manufacturing. It is particularly valuable in sectors that require frequent lifting, pulling, or positioning of heavy loads, as well as those operating in harsh or outdoor environments where durability and corrosion resistance are critical.
