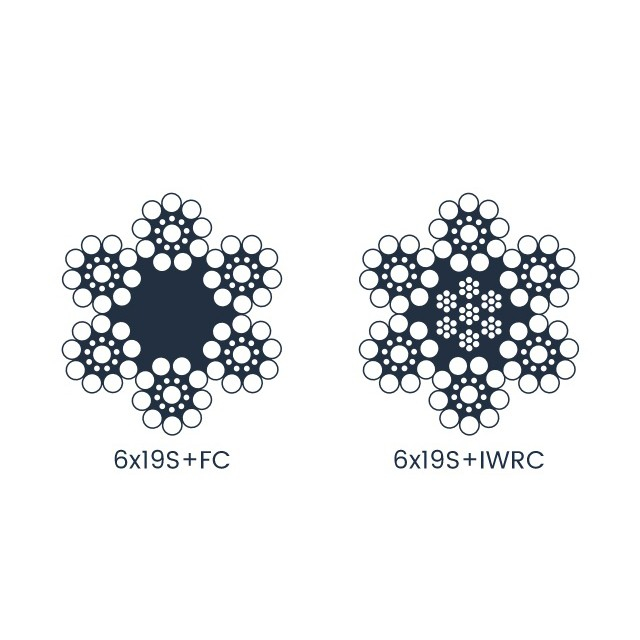

This rope is available in two core variants to match specific needs: 6×19S+FC Steel Wire Rope (equipped with a Fiber Core, FC) and 6×19S+IWRC Steel Wire Rope (featuring an Independent Wire Rope Core, IWRC). Compliant with stringent international standards such as DIN/EN/ISO/JISG/BS and the Chinese national standard GB/T20118-2017, the 6×19S Steel Wire Rope meets global quality benchmarks, making it a trusted choice for industries ranging from mining and oil to manufacturing and transportation.
Crafted from high-quality, heat-treated steel wires, the 6×19S Steel Wire Rope delivers outstanding tensile strength, enabling it to withstand heavy static and dynamic loads without compromising structural integrity. This feature is critical for high-stakes applications like oil well drilling and vertical well hoisting, where load-bearing reliability directly impacts operational safety.
6×19S+FC Steel Wire Rope: The fiber core (typically natural or synthetic) offers enhanced flexibility, reducing fatigue during repeated bending. It is lighter in weight, making it ideal for applications like belt conveyers and cable way drawing, where maneuverability and smooth operation are priorities.
6×19S+IWRC Steel Wire Rope: The independent wire rope core boosts rigidity and crush resistance, making it suitable for harsh environments such as blast furnace winching and excavator operations. It also extends the rope’s lifespan by minimizing internal wear under extreme pressure.
The steel wires in the 6×19S Steel Wire Rope undergo specialized surface treatment to resist abrasion and corrosion. This protection ensures longevity even in dusty, humid, or chemically exposed settings—such as open-pit mining or coastal cable car systems—where environmental damage is a common concern.
The Seale (S) pattern of the 6×19S Steel Wire Rope (6 strands, 19 wires each) creates a tight, uniform structure that distributes stress evenly across all strands and wires. This stability prevents individual components from bearing excessive load, reducing the risk of premature failure and enhancing overall operational safety.
To address unique industrial requirements, the 6×19S Steel Wire Rope can be customized in length, surface coating (for extra corrosion protection), and core material. Whether for small-scale conveyor systems or large-scale drilling rigs, this adaptability makes it a flexible solution for diverse project demands.
| Specification: DIN/EN/ISO/JISG/BS 6x19S+FC, 6x19S+IWRC |
||||||||
| Nominal Diameter (mm) |
Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | ||||||
| 1770 | 1960 | |||||||
| Minimum Breaking Strength(kn) | ||||||||
| FC | IWRC | FC | IWRC | FC | W R C | |||
| 6 | 13.4 | 14.8 | 21.1 | 22.8 | 23.3 | 25.1 | ||
| 7 | 18.3 | 20.1 | 28.7 | 31 | 31.7 | 34.2 | ||
| 8 | 23.8 | 26.2 | 37.5 | 40.5 | 41.4 | 44.6 | ||
| 9 | 30.2 | 33.2 | 47.4 | 51.2 | 52.4 | 56.5 | ||
| 10 | 37.3 | 41 | 58.6 | 63.8 | 64.7 | 69.8 | ||
| 11 | 45.1 | 49.6 | 70.9 | 76.5 | 78.3 | 84.4 | ||
| 12 | 53.7 | 59 | 84.3 | 91.1 | 93.1 | 100 | ||
| 13 | 63 | 69.3 | 99 | 107 | 109 | 118 | ||
| 14 | 73.1 | 80.4 | 115 | 124 | 127 | 137 | ||
| 15 | 83.9 | 92.3 | 132 | 142 | 146 | 157 | ||
| 16 | 95.5 | 105 | 150 | 162 | 166 | 179 | ||
| 17 | 108 | 119 | 169 | 183 | 187 | 202 | ||
| 18 | 121 | 133 | 190 | 205 | 210 | 226 | ||
| 19 | 135 | 148 | 211 | 228 | 233 | 252 | ||
| 20 | 149 | 164 | 234 | 253 | 259 | 279 | ||
| 22 | 181 | 198 | 283 | 306 | 313 | 338 | ||
| 24 | 215 | 236 | 337 | 364 | 373 | 402 | ||
| Note: Stainless Steel Wire Rope is available. | ||||||||
● Standard: GB/T20118-2017
● For vertical well hositing, blast fumace winching oil well drilling, belt conveyer and cable way drawing, cable car excavator.
The 6×19S Steel Wire Rope is a staple in vertical well hoisting and oil well drilling. Its high tensile strength and durability stand up to the extreme loads and harsh underground/offshore conditions of these operations. The 6×19S+IWRC Steel Wire Rope is particularly preferred here, as its steel core handles heavy drill pipes and resists crushing from high-pressure environments.
In manufacturing and metallurgical plants, the rope is essential for blast furnace winching and excavator hoisting. Its robust construction withstands high temperatures (critical for furnace applications) and reliably lifts raw materials, finished products, and heavy machinery—ensuring uninterrupted production workflows.
For belt conveyers in power plants, ports, and factories, the 6×19S+FC Steel Wire Rope is an ideal choice. Its flexibility allows seamless integration with conveyor mechanisms, while its wear resistance ensures consistent performance even with continuous material movement (e.g., coal, ore, or packaged goods).
The 6×19S Steel Wire Rope is also used in cable way drawing and cable car systems. Its corrosion resistance and stable load-bearing capacity make it safe for transporting passengers and goods over long distances, even in mountainous or coastal areas where exposure to weather elements is unavoidable.
The core material is the primary distinction: 6×19S+FC Steel Wire Rope uses a fiber core for flexibility and lighter weight, suited for low-to-medium loads and maneuverable tasks. 6×19S+IWRC Steel Wire Rope uses a steel wire core for higher tensile strength and crush resistance, making it ideal for heavy-duty applications like oil drilling and blast furnace winching.
Yes, the 6×19S Steel Wire Rope meets major international standards including DIN/EN/ISO/JISG/BS and the Chinese standard GB/T20118-2017, ensuring it adheres to global quality and safety requirements for cross-border projects.
Absolutely. Its corrosion and wear-resistant treatment make it durable in outdoor conditions (rain, dust, humidity), making it perfect for open-pit mining, cable cars, and outdoor hoisting operations.
Yes, manufacturers offer customization for the 6×19S Steel Wire Rope, including length, surface coatings (e.g., galvanization for extra corrosion protection), and core material. This ensures the rope fits the exact needs of projects, from small conveyors to large drilling rigs.
Regularly inspect the rope for frayed wires or corrosion, apply proper lubrication to reduce internal wear, and avoid overloading (per the rope’s specified capacity). For the 6×19S+IWRC Steel Wire Rope, check the steel core’s integrity periodically—damage here can compromise overall strength.
