This rope strictly complies with international standards, including GB/T20118-2017, DIN/EN/ISO, and JISG/BS, ensuring consistent performance and seamless compatibility across global markets. Whether used for light to medium-duty lifting, outdoor operations, or marine tasks, the 6×24 Steel Wire Rope stands out for its reliability, making it a preferred choice for businesses seeking cost-effective and long-lasting wire rope solutions.
The 6×24 strand-wire arrangement, combined with the 7FC core, delivers exceptional flexibility that simplifies handling and operation. The fiber core acts as a shock absorber, reducing stress on individual wires during repeated bending or adjustment—an essential feature for applications involving pulley systems or frequent movement. Unlike rigid wire rope alternatives, this design allows the 6×24 Steel Wire Rope to adapt to different equipment setups, minimizing the risk of premature wear and extending its overall service life.
To cater to various environmental conditions, the 6×24 Steel Wire Rope offers stainless steel wire rope as an optional variant. Stainless steel enhances the rope’s resistance to rust and corrosion, making it ideal for marine environments (such as fish net dragging or tugboat operations) where saltwater exposure is common. Even the standard steel version undergoes rigorous quality checks to ensure high tensile strength and breaking strength, enabling it to handle typical loads without deformation.
Adherence to GB/T20118-2017, DIN/EN/ISO, and JISG/BS standards means the 6×24 Steel Wire Rope meets strict quality and safety benchmarks worldwide. This standardization ensures uniform dimensions, material quality, and performance metrics, eliminating compatibility issues when used with equipment from different manufacturers. Whether deployed in European warehouses, Asian ports, or North American farms, users can trust the rope’s consistent performance.
Despite its impressive strength, the 6×24 Steel Wire Rope maintains a lightweight profile, making it easy to transport and install. This characteristic is particularly valuable for applications like cargo netting or temporary lifting tasks, where maneuverability is as important as load capacity. The rope’s robust build also ensures it can withstand occasional impacts or rough handling, a common occurrence in industrial settings.
Specification: DIN/EN/ISO/JISG/BS 6x24+7FC | |||
| Nominal Diameter (mm) | Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | |
| 1570 | 1770 | ||
| Minimum Breaking Strength(kn) | |||
| 6 | 11.45 | 一 | 17.9 |
| 7 | 15.6 | 一 | 24.3 |
| 8 | 20.4 | 28.2 | 31.8 |
| 9 | 25.8 | 35.6 | 40.1 |
| 10 | 31.8 | 44 | 49.6 |
| 11 | 38.5 | 53.2 | 一 |
| 12 | 45.8 | 63.3 | 一 |
| 13 | 53.8 | 74.3 | 一 |
| 14 | 62.4 | 86.2 | 一 |
| 16 | 81.5 | 113 | 一 |
| 18 | 103 | 143 | 一 |
| 20 | 127 | 176 | 一 |
| 22 | 154 | 213 | 一 |
| 24 | 183 | 253 | 一 |
| 26 | 215 | 297 | 一 |
| Note: Stainless Steel Wire Rope is available. | |||
● Standard: GB/T20118-2017
● For tugboat, cargo net, floating of wood, fish net dragging and bind.
The 6×24 Steel Wire Rope is engineered for versatility, making it suitable for a wide range of industries and tasks:
Marine Operations: The stainless steel wire rope variant excels in tugboat mooring, fish net dragging, and wood floating. Its corrosion resistance protects against saltwater damage, while its flexibility handles the constant movement of marine environments.
Cargo Handling & Binding: For logistics and shipping companies, the rope’s balanced strength and flexibility enable secure cargo netting and binding. It holds loads firmly without damaging packaging, ensuring goods remain stable during transportation.
Light Industrial Lifting: In warehouses or small factories, the 6×24 Steel Wire Rope provides sufficient tensile strength for medium-duty lifting tasks (such as moving pallets or small machinery). Its lightweight design simplifies operation with standard lifting equipment.
Outdoor & Agricultural Use: The rope’s durability against weathering (especially with stainless steel) makes it ideal for agricultural tasks—like securing farm equipment or handling bulk materials in open fields. It resists damage from rain, dust, and UV exposure.

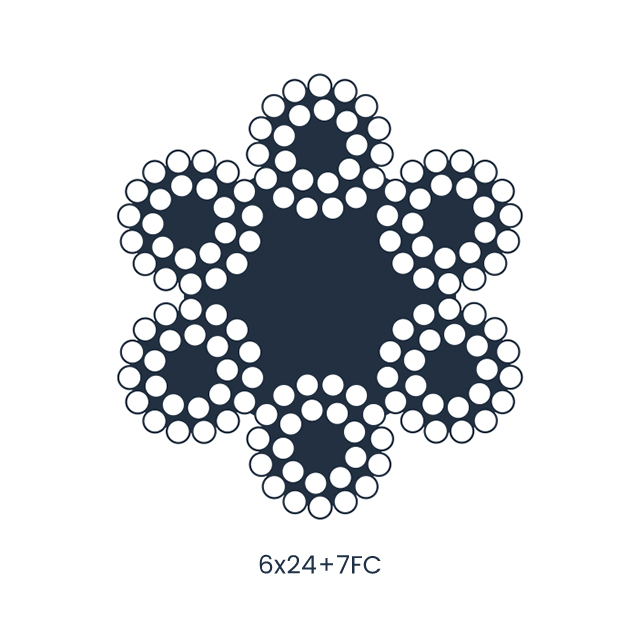

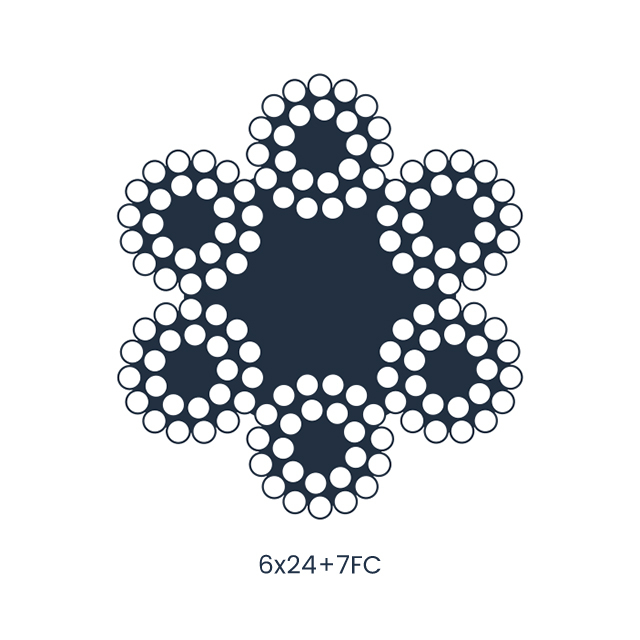

“6×24+7FC” describes the rope’s structure: “6” refers to the number of outer strands, “24” is the number of steel wires per strand, and “7FC” indicates a 7-Strand Fiber Core. This configuration prioritizes flexibility (from the fiber core) while maintaining reliable breaking strength (from the 6×24 wire strands), making it suitable for tasks that require both maneuverability and load-bearing capacity.
Yes, both the standard steel and stainless steel wire rope variants work well in freshwater environments (such as river-based wood floating). The standard steel version resists mild corrosion from freshwater, while the stainless steel variant offers extra protection for long-term use in wet conditions. Regular cleaning to remove sediment will further extend the rope’s life.
While the 6×24 Steel Wire Rope is durable, permanent outdoor installations (like fixed lifting systems) may benefit from the stainless steel wire rope variant. Stainless steel’s corrosion resistance ensures the rope withstands years of exposure to rain, snow, and humidity. For standard steel versions, regular lubrication with a corrosion-resistant oil is recommended to prevent rust.
Avoid overloading by never exceeding the rope’s specified breaking strength (available in product technical documents). Signs of overloading include frayed wires, core damage, or permanent deformation (such as kinks). Inspect the rope before each use—if you notice any of these signs, stop using it immediately and replace it to ensure safety.
