Available in nominal diameters ranging from 3mm to 16mm, it offers a wide selection to match specific application requirements. With approximate weights from 2.26kg/100m (for 3mm diameter) up to 64.3kg/100m (for 16mm diameter), and nominal tensile strengths of 1570MPa and 1770MPa, the 6×12 Steel Wire Rope delivers exceptional performance, making it a trusted choice for demanding tasks. Additionally, stainless steel wire rope options are available to cater to specialized corrosion-resistant needs.
Specification: DIN/EN/ISO/JISG/BS 6x12+7FC | |||
| Nominal Diameter (mm) | Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | |
| 1570 | 1770 | ||
| Minimum Breaking Strength(kn) | |||
| 3 | 2.26 | 一 | 3.33 |
| 4 | 4.02 | 一 | 5.92 |
| 5 | 6.28 | 一 | 9.25 |
| 6 | 9.04 | 一 | 13.3 |
| 7 | 12.3 | 一 | 18.1 |
| 8 | 16.1 | 21 | 23.7 |
| 9 | 20.3 | 26.6 | 30 |
| 10 | 25.1 | 32.8 | 37 |
| 11 | 30.2 | 39.4 | 44.3 |
| 12 | 36.1 | 47.3 | 53.3 |
| 14 | 49.2 | 64.3 | 一 |
| 16 | 64.3 | 84 | 一 |
| Note: Stainless Steel Wire Rope is available. | |||

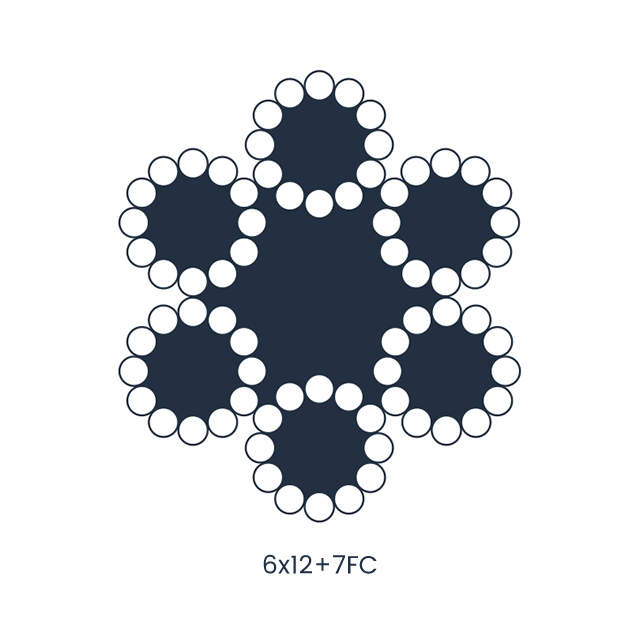

The 6×12 Steel Wire Rope features a robust 6x12+7FC construction, where 6 strands of 12 wires each are wrapped around a 7-core fiber core (FC). This design enhances flexibility while maintaining structural integrity, allowing the rope to handle bending and twisting without compromising strength. The fiber core also provides excellent shock absorption, reducing wear and tear during heavy-duty operations.
Equipped with nominal tensile strengths of 1570MPa and 1770MPa, the rope boasts impressive minimum breaking strengths. For instance, the 10mm diameter variant achieves a minimum breaking strength of 32.8kN at 1570MPa and 37kN at 1770MPa, ensuring it can withstand high loads in critical applications. This high tensile strength makes the 6×12 Steel Wire Rope ideal for tasks that demand reliable load-bearing capacity.
Meeting stringent standards such as DIN/EN/ISO/JISG/BS and GB/T20118-2017, the product guarantees consistent quality and performance. Compliance with these standards ensures compatibility with global industrial practices, making it suitable for both domestic and international markets. Whether used in standard or custom setups, the rope adheres to strict quality control measures.
In addition to the standard carbon steel variant, stainless steel wire rope is available for the 6×12 model. Stainless steel offers enhanced corrosion resistance, making it perfect for outdoor, marine, or humid environments where rust and degradation are major concerns. This versatility expands the product’s applicability across various industries.
The 6×12 Steel Wire Rope is well-suited for marine applications such as tugboat operations, where it can withstand the harsh conditions of saltwater and heavy towing forces. It is also ideal for fish net dragging, providing the strength needed to pull heavy fishing nets through water while resisting corrosion from marine environments (especially the stainless steel variant).
For cargo net use and general binding tasks, this wire rope delivers reliable performance. Its high breaking strength ensures secure load binding, preventing shifting during transportation. Whether securing cargo on trucks, ships, or storage facilities, the 6×12 Steel Wire Rope offers the stability required for safe handling.
In forestry, the rope is used for floating of wood, helping transport logs across water bodies efficiently. Its durability and resistance to abrasion make it suitable for contact with rough wood surfaces, while its tensile strength handles the weight of floating logs. This application leverages the rope’s ability to perform in outdoor, wet conditions.
Beyond specialized uses, the 6×12 Steel Wire Rope serves as a reliable option for general lifting tasks in industrial settings. Its compliance with international standards and consistent performance make it a go-to choice for factories, construction sites, and warehouses where safe and efficient lifting is essential.
The 6×12 Steel Wire Rope adheres to international standards including DIN/EN/ISO/JISG/BS and the Chinese national standard GB/T20118-2017. These standards ensure the product meets strict quality, safety, and performance requirements for global industrial use.
The rope features a 6x12+7FC structure: 6 outer strands, each consisting of 12 individual wires, wrapped around a 7-core fiber core (FC). This design balances flexibility and strength, making it suitable for various bending and load-bearing applications.
The 6×12 Steel Wire Rope is offered in nominal diameters ranging from 3mm to 16mm. This wide range allows customers to select the appropriate size based on their specific load requirements and application scenarios.
Yes, stainless steel wire rope is available for the 6×12 model. Stainless steel provides excellent corrosion resistance, making it ideal for marine, outdoor, or humid environments where standard carbon steel may be prone to rust.
The 6×12 Steel Wire Rope offers two nominal tensile strength options: 1570MPa and 1770MPa. The 1770MPa variant provides higher breaking strength, making it suitable for heavier load applications such as tugboat operations and heavy cargo binding.
