The 6-37 Steel Wire Rope is a high-flexibility, multi-strand solution engineered for applications requiring frequent bending and dynamic load handling.
| Quantity: | |
|---|---|

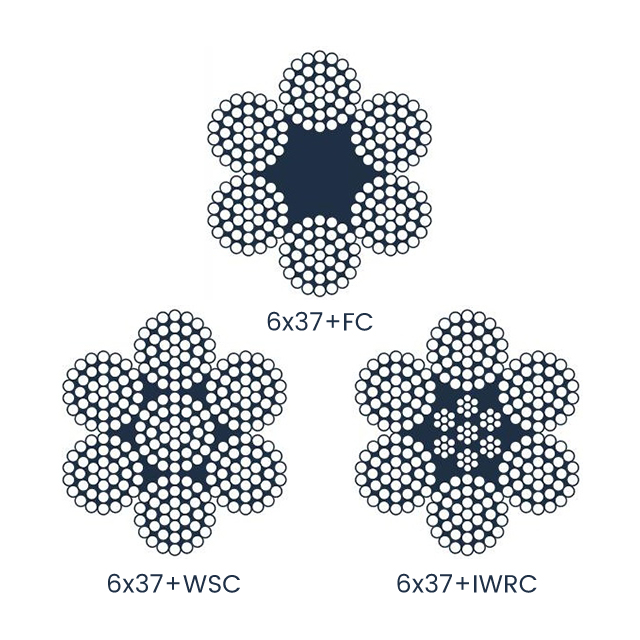

| Specification: DIN/EN/ISO/JISG/BS 6x37+FC, 6x37+WSC or IWRC | |||||||||
| Nominal Diameter (mm) | Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | |||||||
| 1770 | 1960 | ||||||||
| Minimum Breaking Strength(kn) | |||||||||
| FC | IWRC | FC | IWRC | FC | IWRC | ||||
| 5 | 8.56 | 9.53 | 13.1 | 14.1 | 14.5 | 15.6 | |||
| 6 | 12.5 | 137 | 18.8 | 20.3 | 20.8 | 22.5 | |||
| 7 | 17 | 18.6 | 25.6 | 27.6 | 28.3 | 30.6 | |||
| 8 | 22.1 | 24.4 | 33.4 | 36.1 | 37 | 40 | |||
| 9 | 28 | 30.8 | 42.3 | 45.7 | 44.6 | 50.6 | |||
| 10 | 34.6 | 38.1 | 52.2 | 56.4 | 57.8 | 62.5 | |||
| 11 | 41.9 | 46.1 | 63.1 | 68.2 | 69.9 | 75.5 | |||
| 12 | 49.8 | 54.8 | 75.1 | 81.2 | 83.2 | 89.9 | |||
| 13 | 58.5 | 64.3 | 88.2 | 95.2 | 97.7 | 105.4 | |||
| 14 | 67.8 | 74.6 | 102 | 110 | 112.9 | 121.8 | |||
| 16 | 88.6 | 97.4 | 134 | 144 | 148.4 | 159.5 | |||
| 18 | 112 | 123 | 169 | 183 | 187.1 | 202.6 | |||
| 20 | 138 | 152 | 209 | 225 | |||||
| 22 | 167 | 184 | 253 | 273 | - | ||||
| 24 | 199 | 219 | 301 | 325 | |||||
| 26 | 234 | 257 | 353 | 381 | - | - | |||
| 28 | 271 | 298 | 409 | 442 | |||||
● Standard: GB/T20118-2017
● For vertical well banlance, loading and unloading of ship, fish net dragging and salvaging sunken ship.
Its standard 6×37 construction—6 outer strands, each containing 37 wires (typically in Warrington-Seale lay)—delivers exceptional flexibility while maintaining reliable load capacity. Available in diameters from 5 mm to 60 mm, it offers tensile strength of 1570 MPa to 1960 MPa, complying with ISO 9001 and GB/T 20118 standards. The 37-wire strands (smaller wire diameter than 6×19 ropes) enable use with small pulleys (≥16× rope diameter), and the rope supports both fibre core (FC) and steel core (SC) options for tailored performance. This rope is ideal for dynamic applications like overhead cranes, elevators (light-duty), and entertainment rigging, where flexibility and fatigue durability are critical.
• 37-Wire Strand Advantage: 37 smaller wires per strand (vs. 19 in 6×19) enhance flexibility, allowing bending around pulleys as small as 16× rope diameter—perfect for overhead cranes with tight pulley systems.
• Warrington-Seale Lay: This lay pattern balances wire size (alternating small/large wires) to maximize metal fill factor (85%) while maintaining flexibility, reducing fatigue failure by 30% in high-cycle use.
• Fibre Core (FC): Reduces weight by 15% and enhances shock absorption, suitable for light-duty dynamic applications (e.g., entertainment rigging, small elevators).
• Steel Core (SC): Increases tensile strength by 20% and reduces elongation to ≤1.5%, ideal for medium-duty dynamic lifting (e.g., factory overhead cranes, delivery truck lifts).
6×37 (10-40 mm diameter, SC core) powers factory overhead cranes (for machine parts, assembly lines) and automotive production line hoists—its flexibility allows smooth spooling on multi-layer drums, and SC core resists heavy load elongation.
6×37 (5-16 mm diameter, FC core) is used in theater rigging (stage curtains, lighting) and residential small elevators (≤500 kg capacity)—its lightweight FC core and high flexibility enable precise, quiet operation (≤55 dB).
6×37 uses 37 smaller wires per strand (vs. 19 larger wires in 6×19), reducing wire rigidity and enabling bending around smaller pulleys—critical for dynamic applications like overhead cranes.
At 1770 MPa tensile strength, the 16 mm 6×37 (FC) rope has a minimum breaking load of 280 kN, suitable for 56 kN safe working load (5:1 safety factor) in theater rigging or small elevators.
Inspect every 4 weeks for wire fraying (focus on pulley contact points); reapply lubricant (every 3 months) to reduce friction—this extends service life by 25% in industrial overhead crane applications.
