8 Strands Compact Strand Steel Wire Rope

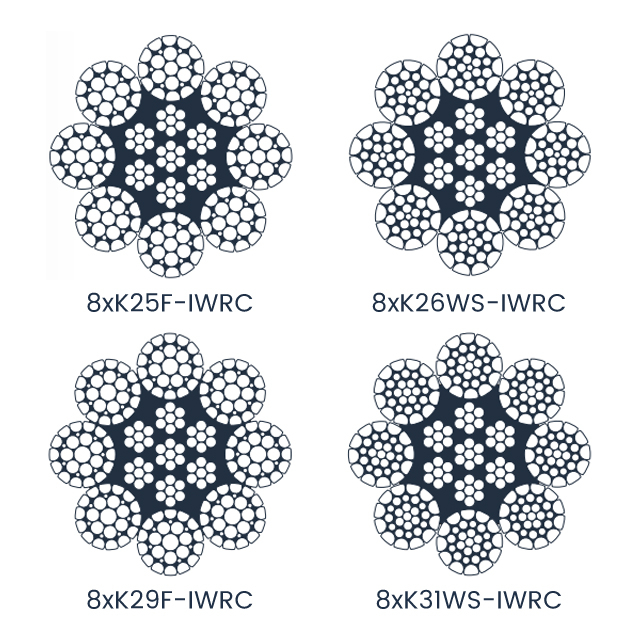

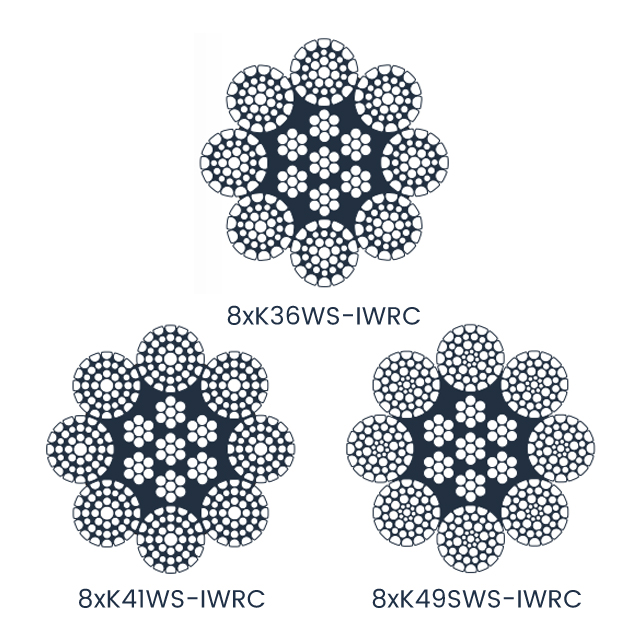

Strand construction:

1-6-6F-12 1-5-5+5-10

1-7-7F-14 1-6-6+6-12

1-7-7+7-14 1-8-8+8-16

1-8-8-8+8-16

Product Overview

This premium rope features eight pre-formed, compacted strands arranged around a central core, where each strand undergoes precision rolling to eliminate internal voids and create a smooth, dense surface. The 8-strand configuration provides inherent torque balance, while compaction enhances both strength and wear resistance. This design delivers exceptional flexibility without sacrificing durability, making it suitable for applications requiring both precise load control and extended service life. Available in diameters from 6mm to 80mm, it meets rigorous industry standards including ISO 10425 and EN 12385 .

Product Features

Torque-Balanced Design

The 8-strand construction with alternating lay directions creates a naturally balanced rope that minimizes rotation under load—a critical safety feature for lifting irregular or unstable loads. This torque neutrality eliminates the need for counter-rotation devices in many applications, reducing equipment complexity and maintenance requirements.

Enhanced Wear Resistance

The compacting process creates a smooth outer surface with 20-30% greater contact area than non-compacted ropes, distributing contact stress more evenly across sheaves and drums. This feature reduces wear on both the rope and equipment, extending service intervals by up to 50% in high-friction applications.

High Tensile Performance

Manufactured from premium high-tensile steel wires with tensile strengths ranging from 1770 MPa to 2160 MPa, this rope delivers impressive breaking forces. A 20mm diameter rope achieves a minimum breaking load of 397 kN at 2160 MPa, providing substantial safety margins for heavy-duty lifting .

Flexibility and Fatigue Resistance

Despite its high strength, the 8-strand design maintains excellent flexibility with a minimum bending radius of 20× rope diameter. This combination allows for use in multi-sheave systems while resisting fatigue failure—testing shows it can withstand over 1.5 million bending cycles at 40% of rated load.

Applications

This versatile rope excels in demanding lifting scenarios:

• Mobile and crawler cranes requiring precise load control and long reach

• Industrial overhead cranes in manufacturing facilities with high daily usage

• Forestry equipment including log skidders and harvesters operating in abrasive conditions

• Offshore lifting applications including platform cranes and winches

• Mining machinery for ore extraction and material handling in harsh environments

FAQ

How does 8-strand construction compare to 6-strand designs?

8-strand ropes provide superior torque balance and flexibility compared to 6-strand designs, making them better suited for applications involving complex load movements. The additional strands distribute stress more evenly, enhancing fatigue resistance in multi-directional lifting operations.

What core options are available for this rope?

Common core options include fiber core (FC) for maximum flexibility, independent wire rope core (IWRC) for enhanced strength, and polymer-wrapped core (PWRC) for improved corrosion resistance and reduced maintenance.

What is the recommended lubrication schedule?

Under normal operating conditions, lubrication is recommended every 3-6 months. In harsh environments (dust, moisture, or chemicals), more frequent lubrication with specialized high-pressure grease is required to maintain optimal performance.

Can this rope be used with automated lifting systems?

Yes, the consistent diameter and torque-balanced design make it ideal for automated systems. Its predictable performance characteristics ensure reliable operation with electronic load monitoring and control systems.
