6 Strands Compact Strand Steel Wire Rope

Nominal Diameter	Approx Weight(kg/100m)	Nominal Tensile Strength(MPa)
		1570	1670	1770	1870
		Minimum Breaking Strength(kn)
10	47.7	64.4	68.3	72.6	76.6
12	68.6	92.7	98.4	104.6	110.3
14	93.4	126.2	134	142.4	150
16	122	165	175	186	196
18	155	209	222	235	248
20	191	257	274	290	307
22	231	312	331	351	371
24	275	371	394	418	442
26	322	435	463	491	518
28	374	505	537	569	601
30	429	579	616	653	690
32	488	659	701	743	785
34	551	744	792	839	886
36	618	834	887	941	994
38	689	930	989	1050	1110
40	763	1030	1100	1160	1230
42	841	1140	1210	1280	1350
44	923	1250	1330	1400	1480
46	1010	1360	1450	1540	1620
48	1100	1480	1580	1670	1770
50	1190	1610	1710	1810	1920
52	1290	1740	1850	1960	2070
54	1390	1880	2000	2120	2240
56	1500	2020	2150	2280	2400
58	1600	2170	2300	2440	2580
60	1720	2320	2460	2610	2760
62	1830	2470	2630	2790	2950
64	1850	2640	2800	2970	3140
66	2080	2800	2980	一	一
68	2210	2980	3170	一	一

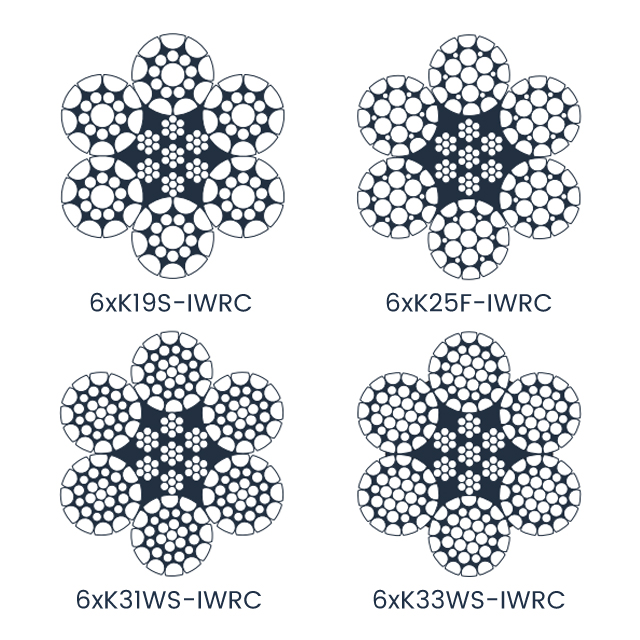

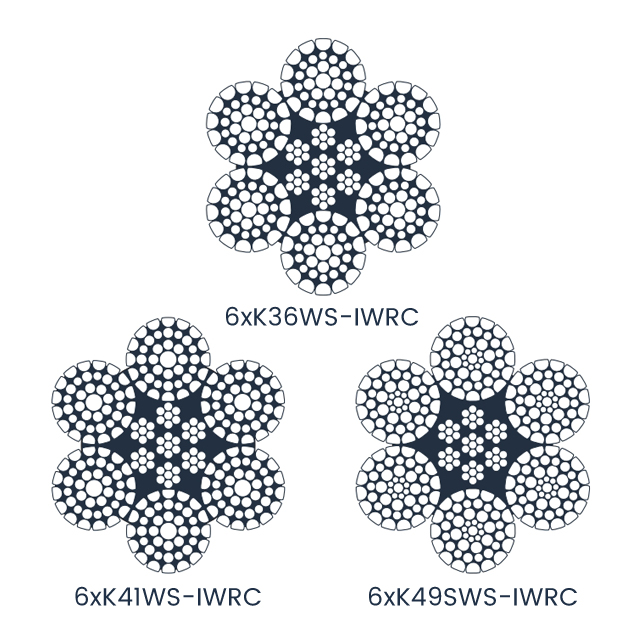

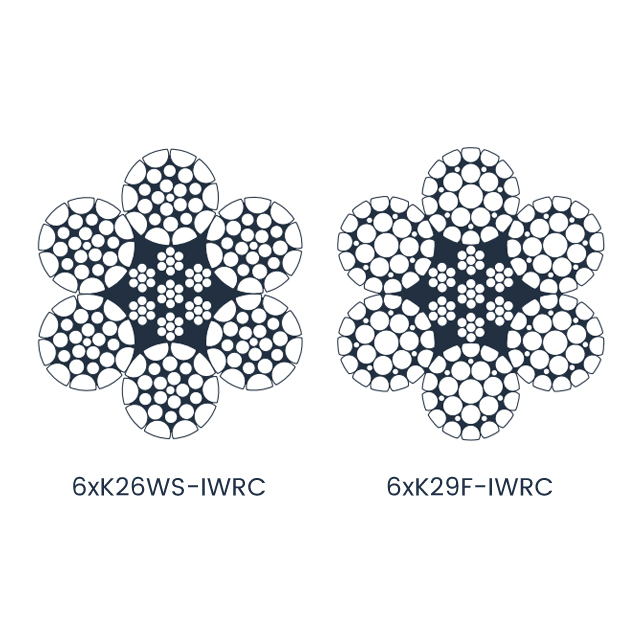

Strand Construction:

1-9-9 1-6-6F-12

1-5-5+5-10 1-7-7F-14

1-6-6+6-12 1-6-6+6-14

1-7-7+7-14 1-8-8+8-16

1-8-8-8+8-16

Product Overview

Its 6-strand compacted construction—formed by cold-pressing strands to reduce gaps between wires—boasts a high metal fill factor (over 90%), delivering superior strength-to-weight ratio compared to standard non-compacted ropes. Available in diameters from 8 mm to 150 mm, it offers tensile strength ranging from 1770 MPa to 2160 MPa, meeting international standards such as ISO 9001, CCS, and ABS. Designed for multi-layer drum winding, this rope excels in applications requiring resistance to crushing and lateral pressure, making it a top choice for heavy machinery and mining operations.

Product Features

Compacted Strand Technology Advantages

High Metal Fill Factor: Cold compaction eliminates wire gaps, increasing the rope’s cross-sectional metal area by 12-15%—this boosts breaking strength and reduces wear from drum contact.

Smooth Outer Profile: The compacted strands create a flat, uniform outer surface that minimizes friction on pulleys, lowering equipment maintenance costs by 20% compared to standard ropes.

Performance & Durability Highlights

Crush Resistance: The dense strand structure withstands lateral pressure up to 500 N/mm², preventing deformation during multi-layer coiling on heavy crane drums.

Anti-Fatigue Properties: Heat-treated wires and optimized strand lay reduce stress concentration, enabling the rope to endure over 10,000 repeated load cycles without fatigue failure.

Applications

Heavy Machinery & Construction

Specialized for crawler cranes, tower cranes, and hydraulic excavators—where multi-layer drum winding and heavy load lifting (50-500 tons) are required. Its crush resistance ensures stable performance in high-lift construction projects (e.g., skyscraper building, bridge assembly).

Mining & Industrial Lifting

Widely used in mining hoists (underground ore lifting), port container cranes, and steel mill slab handling. The high abrasion resistance makes it suitable for harsh mining environments with dust, gravel, and constant drum friction.

FAQ

How does compacted strand technology differ from standard strands?

Compacted strands are cold-pressed to eliminate wire gaps, increasing strength and reducing wear; standard strands have loose wire arrangements that are more prone to abrasion and crushing under heavy loads.

Can this rope be used in marine environments?

Yes, optional hot-dip galvanization or zinc-aluminum coating provides marine-grade corrosion resistance, making it suitable for offshore cranes or port container handling.

What is the weight per 100 meters for a 50 mm diameter rope?

A 50 mm 6-strands compact-strand rope weighs approximately 980 kg per 100 meters, balancing high strength with manageable handling weight for crane operations.
