The 6x31/36WS-FC/WSC Hanging Basket Rope represents the gold standard for suspended access equipment, engineered specifically for the safety-critical requirements of construction and maintenance hanging basket systems.
| Quantity: | |
|---|---|

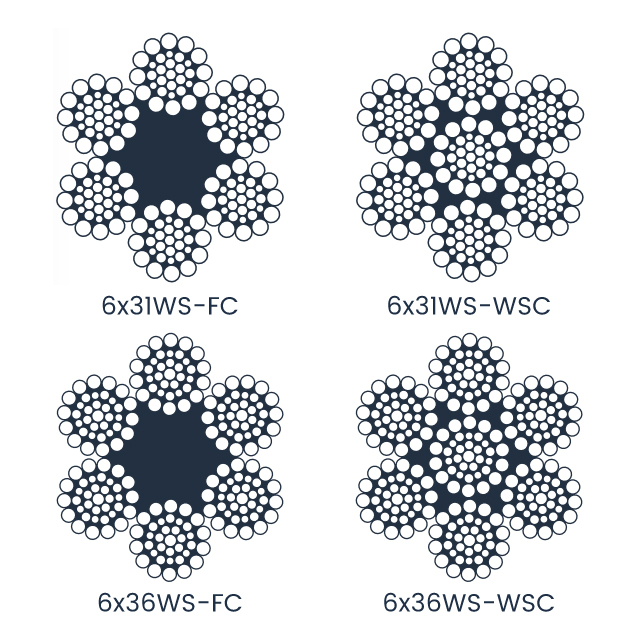

| Specification: DIN/EN/ISO/JISG/BS/YB/T 6x31WS-FC, 6x31WS-WSC, 6x36WS-FC, 6x36WS-WSC |
||||||||||||||
| Nominal Diameter (mm) |
Approx Weight(kg/100m) | Nominal Tensle Strength(MPa) | ||||||||||||
| 1870 | 1960 | 2060 | 2160 | 2260 | 2360 | |||||||||
| Minimum Breaking Strength(kn) | ||||||||||||||
| FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC | |
| 6.0 | 13.7 | 15.1 | 22.2 | 24.0 | 23.3 | 25.1 | 24.5 | 26.4 | 25.7 | 27.7 | 26.9 | 28.9 | 28.1 | 30.2 |
| 7.0 | 18.6 | 20.5 | 30.2 | 32.6 | 31.7 | 34.2 | 33.3 | 35.9 | 34.9 | 37.7 | 36.6 | 39.4 | 38.2 | 41.1 |
| 8.0 | 24.3 | 26.8 | 39.5 | 42.6 | 41.4 | 44.7 | 43.5 | 47.0 | 45.6 | 49.2 | 47.7 | 51.5 | 49.8 | 53.8 |
| 8.3 | 26.2 | 28.8 | 42.5 | 45.9 | 44.6 | 48.1 | 46.9 | 50.6 | 49.1 | 53.0 | 51.4 | 55.5 | 53.7 | 57.9 |
| 8.6 | 28.1 | 31.0 | 45.6 | 49.3 | 47.9 | 51.6 | 50.3 | 54.2 | 52.7 | 56.9 | 55.2 | 59.5 | 57.7 | 62.1 |
| 9.0 | 30.8 | 33.9 | 50.0 | 53.9 | 52.4 | 56.5 | 55.1 | 59.4 | 57.8 | 62.3 | 60.4 | 65.1 | 63.1 | 68.0 |
| 9.5 | 34.3 | 37.7 | 55.7 | 60.1 | 58.4 | 63.0 | 61.4 | 66.2 | 64.3 | 69.4 | 67.3 | 72.6 | 70.3 | 75.9 |
| 10 | 38.0 | 41.8 | 61.7 | 66.6 | 64.7 | 69.8 | 68.0 | 73.4 | 71.3 | 76.9 | 74.6 | 80.5 | 77.9 | 84.0 |
| 12 | 54.7 | 60.2 | 88.9 | 95.9 | 931 | 100 | 97.9 | 105 | 103 | 111 | 107 | 115 | 112 | 120 |
| 14 | 74.5 | 一 | 121 | 一 | 127 | 一 | 133 | 一 | 140 | 一 | 146 | 一 | 153 | 一 |
| 16 | 97.3 | 一 | 158 | 一 | 166 | 一 | 174 | 一 | 183 | 一 | 191 | 一 | 200 | 一 |
| Note: Stainless Steel Wire Rope is available. | ||||||||||||||
This specialized rope features a Warrington-Seale (WS) strand configuration with either fiber core (FC) or wire strand core (WSC) options, providing 6 strands each containing 31 or 36 precisely arranged wires. The WS pattern combines large and small diameter wires to create a smooth outer surface with exceptional wear resistance, while the core options allow customization for specific load and flexibility requirements. Designed to withstand the unique stresses of vertical suspension—including constant tension, repeated bending, and environmental exposure—this rope meets stringent safety standards for personnel lifting applications, including EN 12385-4 and GB 24543.
The 6x31/36WS configuration provides an ideal balance of strength and flexibility. The Warrington-Seale pattern ensures uniform load distribution across the strand surface, while the tight wire arrangement minimizes stress concentration points that could lead to premature failure.
• Fiber Core (FC): Constructed from high-strength polypropylene or polyester fibers, FC versions offer enhanced flexibility and shock absorption, reducing operator fatigue during extended use. The fiber core contributes 5-8% of total breaking strength.
• Wire Strand Core (WSC): Featuring a 7×7 steel strand core, WSC versions deliver 15-20% higher breaking strength than FC alternatives, making them suitable for heavier loads or extended service intervals.
Engineered for millions of bending cycles over sheave systems, this rope undergoes specialized heat treatment to enhance ductility. Testing shows it can withstand over 2 million bending cycles at 40% of breaking load without significant performance degradation.
All wires feature zinc coating (minimum 90g/m²) with optional galvanized after laying (GALV) treatment for enhanced corrosion resistance. This protection is vital for outdoor applications where exposure to rain, humidity, and construction chemicals is common.
This specialized rope is essential for safe suspended access:
• Building facade maintenance on high-rise structures requiring personnel access
• Industrial painting and coating applications on bridges, towers, and tanks
• Window installation and cleaning for commercial and residential buildings
• Construction scaffolding suspension for temporary work platforms
• Inspection and repair of infrastructure including dams, tunnels, and power plants
Depending on diameter and core type, maximum working loads range from 1,500 kg to 3,500 kg with a minimum safety factor of 10:1 (breaking strength 10× working load), exceeding safety requirements for personnel lifting.
FC ropes offer better flexibility for systems requiring frequent movement and adjustment, making them ideal for light to medium loads. WSC ropes provide superior strength for heavy-duty applications or when extended service life is prioritized over maximum flexibility.
Daily visual inspections should check for broken wires (more than 6 in any 6d length requires immediate removal), corrosion, and core degradation. Monthly inspections should measure diameter reduction—any loss exceeding 2% indicates excessive wear.
Under proper maintenance and average usage (10-15 hours per day), service life typically ranges from 12 to 18 months for FC ropes and 18 to 24 months for WSC versions. All ropes should be replaced after 24 months regardless of condition for safety-critical applications.
