The 4×25Fi/31WS-FC Hanging Basket Rope represents a specialized solution for high-capacity suspended access systems, engineered to handle extreme loads while maintaining operational safety.
| Quantity: | |
|---|---|
| Specification: DIN/EN/ISO/JISG/BS/YB/T 4×25Fi-FC, 4x31WS-FC |
|||||||
| Nominal Diameter (mm) |
Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | |||||
| 1870 | 1960 | 2060 | 2160 | 2260 | 2360 | ||
| Minimum Breaking Strength(kn) | |||||||
| 6.0 | 14.8 | 24.2 | 25.4 | 26.7 | 28.0 | 29.3 | 30.6 |
| 7.0 | 20.1 | 33.0 | 34.6 | 36.3 | 38.1 | 40.0 | 41.6 |
| 8.0 | 26.2 | 43.1 | 45.2 | 47.5 | 49.8 | 52.1 | 54.4 |
| 8.3 | 28.2 | 46.4 | 48.6 | 51.1 | 53.6 | 56.0 | 58.5 |
| 8.6 | 30.3 | 49.8 | 52.2 | 54.8 | 57.5 | 60.2 | 62.8 |
| 9.0 | 33.2 | 54.5 | 57.2 | 60.1 | 63.0 | 65.9 | 68.8 |
| 9.5 | 37.0 | 60.8 | 63.7 | 66.9 | 70.2 | 73.4 | 76.7 |
| 10 | 41.0 | 67.3 | 70.6 | 74.2 | 77.8 | 81.4 | 85.0 |
| 12 | 59.2 | 96.9 | 102 | 107 | 112 | 117 | 122 |
| 14 | 80.6 | 132 | 138 | 145 | 152 | 159 | 167 |
| 16 | 105 | 172 | 180 | 190 | 199 | 208 | 217 |
| Note: Stainless Steel Wire Rope is available. | |||||||

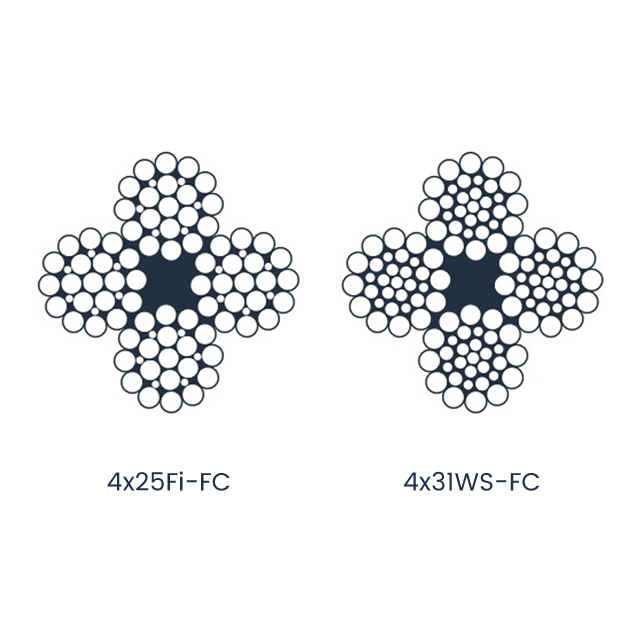

This advanced construction features 4 strands with 25 filler wires (Fi) each, utilizing a Warrington-Seale (WS) pattern with 31 total wires per strand, all supported by a central Fiber Core (FC) . Designed specifically for heavy-duty hanging basket applications in construction and industrial maintenance, this rope combines exceptional strength with the flexibility required for safe suspended operations.
The inclusion of 25 filler wires (Fi) within each strand creates a denser, more compact rope structure that distributes load evenly across the entire cross-section . This design minimizes stress concentration points, enhancing fatigue resistance and extending service life in high-cycle applications where baskets are repeatedly raised and lowered.
With a diameter range of 6.0mm to 44mm, this rope achieves minimum breaking forces exceeding 53,400N for 9.5mm diameter, with tensile strength ratings up to 1,960N/mm² . The Fiber Core (FC) provides additional shock absorption, critical for protecting both equipment and personnel during sudden load changes or unexpected movements.
Manufactured in compliance with GB/T 20118-2017 (General Technical Specification for Steel Wire Ropes) standards and tested to meet rigorous lifting equipment requirements . The rope’s construction minimizes stretch under load, providing stable platform performance essential for worker confidence and safety at height.
Designed for suspended platforms carrying multiple workers and heavy equipment during high-rise building construction. The rope’s high load capacity supports the weight of concrete mixers, tool storage, and personnel without compromising stability.
Used in access platforms for maintaining large industrial structures such as power plant boilers, chemical processing towers, and refinery equipment. The rope’s construction resists chemical exposure and high temperatures common in industrial environments.
Critical for suspended inspection platforms used in evaluating structural integrity of bridges, dams, and other large infrastructure. The FC core provides the flexibility needed to navigate around structural components while maintaining the strength required for stable positioning.
The safe working load (SWL) is calculated as minimum breaking force divided by a safety factor of 10:1 for personnel lifting. For example, a rope with a 53,400N breaking force has an SWL of 5,340N (approximately 545kg) .
Daily pre-use inspections are mandatory. Comprehensive inspections by certified personnel are required every 2 months, with non-destructive testing recommended annually to detect internal corrosion or wire damage invisible to visual inspection.
Exposure to saltwater, chemicals, and extreme temperatures can reduce service life by 30-50%. In such environments, monthly inspections and increased lubrication frequency are recommended to maintain performance.
Only factory-installed swaged fittings or certified wedge sockets specifically designed for this rope type are approved. Field splicing is prohibited, as it can reduce strength by up to 40% and void safety certifications.
