| Quantity: | |
|---|---|

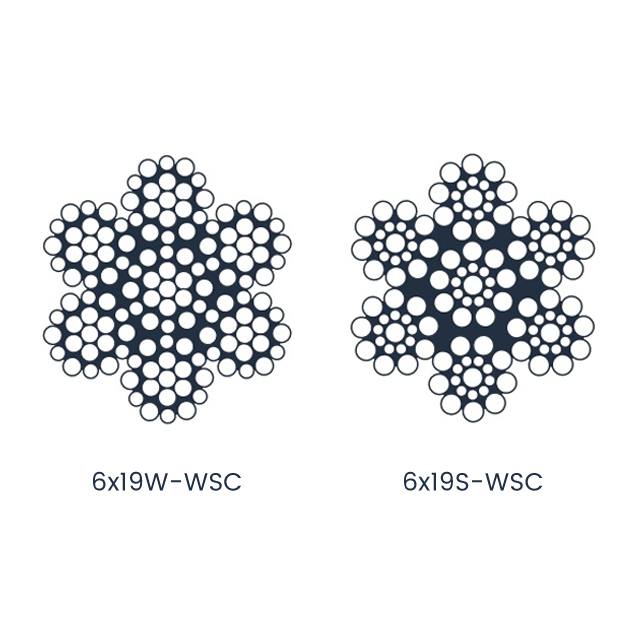

| Specification: DIN/EN/ISO/JISG/BS/YB/T 6X19W-WSC, 6X19S-WSC | |||||||
| Nominal Diameter (mm) | Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | |||||
| 1870 | 1960 | 2060 | 2160 | 2260 | 2360 | ||
| Minimum Breaking Strength(kn) | |||||||
| 6.0 | 15.0 | 24.0 | 25.1 | 26.4 | 27.7 | 29.0 | 30.2 |
| 7.0 | 20.5 | 32.6 | 34.2 | 35.9 | 37.7 | 39.4 | 41.2 |
| 8.0 | 26.8 | 42.6 | 44.7 | 46.9 | 49.2 | 51.5 | 53.8 |
| 8.3 | 28.8 | 45.9 | 48.1 | 50.5 | 53.0 | 55.4 | 57.9 |
| 8.6 | 31.0 | 49.2 | 51.6 | 54.2 | 56.9 | 59.5 | 62.1 |
| 9.0 | 33.9 | 53.9 | 56.5 | 59.4 | 62.3 | 65.2 | 68.1 |
| 9.5 | 37.7 | 60.1 | 63.0 | 66.2 | 69.4 | 72.6 | 75.8 |
| 10 | 41.8 | 66.6 | 70.0 | 73.3 | 76.9 | 80.5 | 84.0 |
| 12 | 60.2 | 95.9 | 100 | 106 | 111 | 116 | 121 |
| Note: Stainless Steel Wire Rope is available. | |||||||
The 6X19W/S-WSC Hanging Basket Rope represents the pinnacle of safety-engineered lifting technology, specifically designed for suspended access equipment in construction and maintenance. Its unique Warrington-Seale (W/S) strand configuration combines 6 strands with varying wire diameters to optimize strength and flexibility, while the Wire Strand Core (WSC) provides superior structural support compared to fiber cores . Available in diameters from 6.0mm to 38mm, this rope delivers exceptional performance in vertical lifting applications where safety and reliability are paramount .
The Warrington-Seale (W/S) design incorporates both large and small diameter wires within each strand, creating a denser, more compact structure that enhances wear resistance and load distribution . This configuration minimizes internal friction, reducing heat buildup during prolonged use and extending service life.
The Wire Strand Core (WSC) adds significant tensile strength, with the complete rope achieving minimum breaking forces from 28,500N for 6.4mm diameter to 157,000N for larger sizes . This core design maintains dimensional stability under heavy loads, preventing core collapse that could compromise rope integrity.
Complies with EN 12385-4 standards and holds CE and ISO 9001 certifications, ensuring adherence to rigorous European and international safety requirements for lifting equipment . Each rope undergoes rigorous testing for breaking strength, fatigue resistance, and corrosion resistance before deployment.
The primary application for suspended platforms used in window cleaning, painting, and repair of high-rise structures. The rope’s flexibility allows for smooth movement of baskets while maintaining the stability required for worker safety at heights.
Employed in suspended access systems for inspecting and maintaining large storage tanks, silos, and industrial vessels. The WSC core provides the rigidity needed to support heavy inspection equipment while resisting the chemical exposure common in industrial environments.
Critical for suspended work platforms used in bridge repair, cable-stay inspection, and structural maintenance of large-scale infrastructure. The rope’s resistance to environmental factors ensures reliable performance in outdoor settings exposed to weather extremes.
Daily visual inspections before use are mandatory, with detailed inspections by qualified personnel every 3 months or 150 hours of operation, whichever comes first. Inspections must check for broken wires, corrosion, and core integrity .
The Wire Strand Core (WSC) provides superior resistance to crushing and deformation under heavy loads, maintaining consistent performance even when subjected to the lateral forces common in basket operations. It also offers better heat resistance during prolonged use .
Under proper maintenance and moderate usage, the rope can last up to 2 years. However, service life is heavily dependent on operating conditions—ropes used in harsh environments or with frequent heavy loads should be replaced sooner, not exceeding 12 months in such cases.
Operators must complete certified training covering proper installation, inspection protocols, and load calculation. Certification should comply with ISO 13849 standards for safety-related control systems in machinery.
