The 8x19S-CSC 8x19W-CSC 8x25F-CSC Elevator Steel Wire Rope is a specialized safety-critical rope engineered exclusively for elevator systems.
| Quantity: | |
|---|---|
| Specification:DIN/EN/ISO/JISG/BS/GB/T 8x19S+CSC,8x19W+CSC,8x25F+CSC |
||||||
| Nominal Diameter (mm) |
Approx Weight(kg/100m) | Nominal Tensile Strength(MPa) | ||||
| 1370/1770 | 1570/1770 | 1570 | 1770 | 1960 | ||
| Minimum Breaking Strength(kn) | ||||||
| 8 | 24.6 | 34.7 | 36.9 | 34.7 | 39.1 | 43.3 |
| 9 | 31.2 | 43.9 | 46.7 | 43.9 | 49.5 | 54.8 |
| 9.5 | 34.7 | 48.9 | 52.0 | 48.9 | 55.1 | 61.0 |
| 10 | 38.5 | 54.2 | 57.6 | 54.2 | 61.1 | 67.6 |
| 11 | 46.6 | 65.5 | 69.7 | 65.5 | 73.9 | 81.8 |
| 12 | 55.4 | 78.0 | 83.0 | 78.0 | 87.9 | 97.4 |
| 12.7 | 62.1 | 87.4 | 92.9 | 87.4 | 98.5 | 109 |
| 13 | 65.1 | 91.5 | 97.4 | 91.5 | 103 | 114 |
| 14 | 75.5 | 106 | 113 | 106 | 120 | 133 |
| 15 | 86.6 | 122 | 130 | 122 | 137 | 152 |
| 16 | 98.6 | 139 | 147 | 139 | 156 | 173 |
| 18 | 124.7 | 175 | 187 | 175 | 198 | 219 |
| 19 | 139.0 | 196 | 208 | 196 | 220 | 244 |
| 20 | 154.0 | 217 | 230 | 217 | 244 | 270 |
| 22 | 186.3 | 262 | 279 | 262 | 296 | 327 |
| Note: Stainless Steel Wire Rope is available. | ||||||

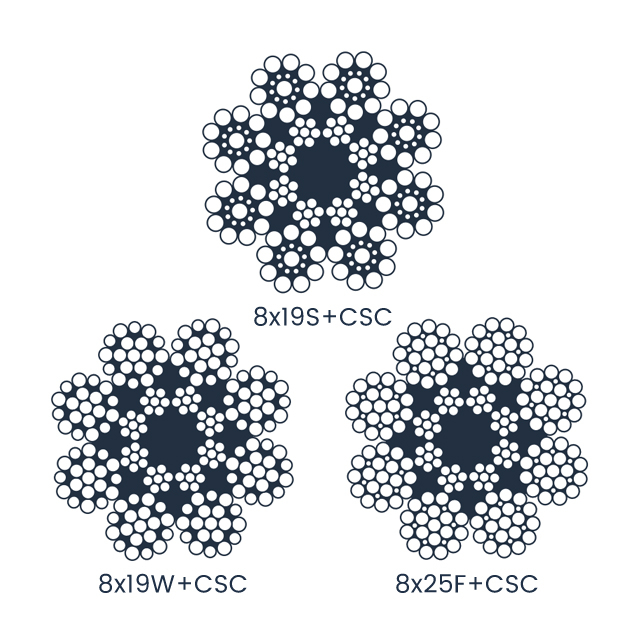

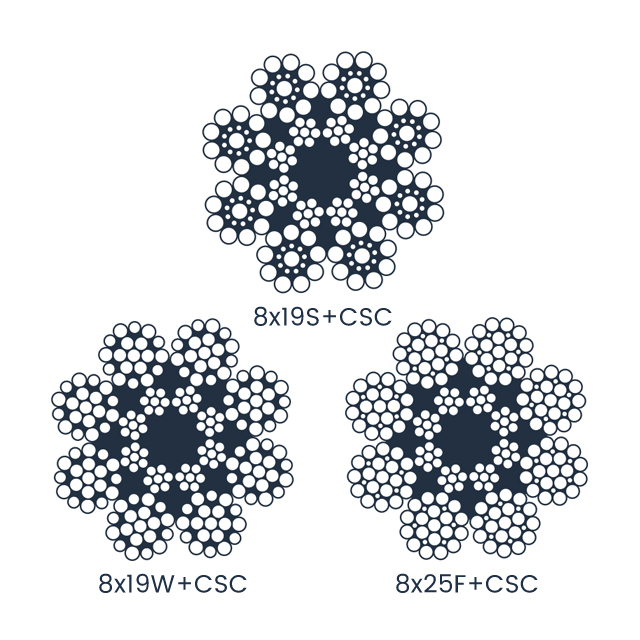

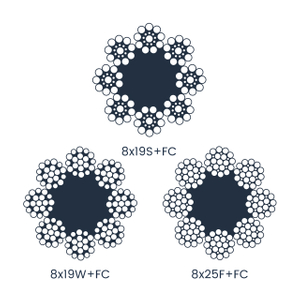

It offers three optimized configurations: 8×19S-CSC (8 strands, 19 wires each, Seale lay, compacted steel core), 8×19W-CSC (8 strands, 19 wires each, Warrington lay, compacted steel core), and 8×25F-CSC (8 strands, 25 wires each, Fill lay, compacted steel core). Available in diameters from 8 mm to 16 mm (standard elevator sizes), it meets EN 81-20 (elevator safety standard) and ISO 9001, with tensile strength fixed at 1770 MPa for consistent safety performance. The compacted steel core (CSC) ensures low elongation and high stability, critical for elevator load control and passenger safety.
Compacted Steel Core (CSC): Reduces rope elongation by 30% compared to fibre-core elevator ropes, ensuring precise floor alignment (±2 mm) even after long-term use.
Low-Noise Operation: Smooth compacted strands and specialized lubricant (food-grade for passenger elevators) reduce running noise to below 50 dB, enhancing passenger comfort.
8×19S-CSC: Seale lay design offers high flexibility, ideal for small elevator shafts (e.g., residential elevators) with tight pulley bends.
8×19W-CSC: Warrington lay provides higher strength, suited for medium-load elevators (e.g., office building elevators, 1000-1500 kg capacity).
8×25F-CSC: Fill lay (more wires per strand) delivers maximum durability, preferred for heavy-duty elevators (e.g., freight elevators, hospital bed elevators, 2000+ kg capacity).
The 8×19S-CSC (8-10 mm diameter) is used in residential, hotel, and office passenger elevators—its flexibility and low noise meet comfort requirements, while CSC ensures safety for daily use (10,000+ cycles/month).
The 8×19W-CSC (10-12 mm diameter) suits commercial freight elevators (cargo, equipment), and the 8×25F-CSC (12-16 mm diameter) is for heavy-duty applications: hospital bed elevators, construction site material elevators, and industrial freight lifts.
For passenger elevators (daily 1000+ cycles), service life is 5-7 years; for freight elevators (heavy load, 500+ cycles/day), it is 3-5 years—compliant with EN 81-20’s mandatory replacement schedule.
Yes, all variants are treated with flame-retardant lubricant and comply with EN 13501-6 (elevator fire safety), maintaining structural integrity for 30+ minutes in fire conditions.
Each batch undergoes 3 key tests: breaking load test (minimum 200 kN for 10 mm diameter), elongation test (max 1.5% under rated load), and fatigue test (100,000 cycles without failure)—all results are documented for traceability.
