1x7 / 1x19 Steel Wire Rope

Product Overview

As a premier manufacturer and supplier of engineered rigging solutions, we produce the 1x7 and 1x19 Steel Wire Rope for maximum structural rigidity. Designed specifically for volume sourcing and heavy-duty industrial applications, this single-strand solution delivers uncompromising dimensional stability where flexibility is not required.

• Diameter Range: 2 mm to 30 mm (1/8" to 5/8")

• Tensile Strength: 1670 MPa to 2160 MPa

• Standard Compliance: ASTM A475, ISO 9001, DIN 3060

Product Description

The 1x7 and 1x19 steel wire rope presents a robust, single-strand architecture crafted specifically for environments where absolute rigidity takes precedence over flexibility. When handling this rope, the immediate tactile feedback is one of unyielding solidness; the tightly twisted galvanized wires form a smooth, uniform metallic cylinder that fiercely resists bending, crushing, and twisting. Unlike multi-strand alternatives that can compress or deform under extreme tension, this single-strand configuration eliminates internal friction entirely. By removing the microscopic gaps between separate strands, the applied load distributes evenly across every individual wire, significantly reducing stress concentration and metal fatigue.

Visually, the heavy hot-dip galvanized finish provides a bright, clean metallic sheen that signifies a formidable barrier against environmental degradation. This meticulous construction ensures that when deployed in critical structural supports or heavy-duty tensioning systems, the rope maintains its exact dimensional profile. It prevents hazardous elongation, bird-caging, or sagging over years of continuous exposure to high winds, heavy loads, and harsh atmospheric elements, delivering a foundation of absolute security for your most demanding engineering projects.

Product Specifications

Key Features & Highlights

Our single-strand wire rope is engineered to solve critical structural challenges, ensuring long-term stability and safety for your infrastructure projects while reducing ongoing maintenance costs.

• Elimination of Inter-Strand Friction: By utilizing a single-strand design, we completely remove the internal wear and tear caused by strands rubbing against each other. This extends the operational lifespan of your tensioning systems significantly.

• Unmatched Dimensional Stability: The tight 1x7 configuration provides 50% higher rigidity compared to standard multi-strand ropes. This guarantees your structural supports will not sag or stretch, maintaining precise tension even under extreme wind loads.

• Optimized Load Distribution: The seamless nesting of wires ensures that heavy loads are shared equally across the entire cross-section. This structural harmony minimizes localized stress points, dropping the risk of sudden wire breakage by up to 35%.

• Kink-Resistant Architecture: The inherent stiffness of the 1x19 variant allows it to spool smoothly on large drums without the dangerous kinking or bird-caging often experienced with softer ropes during installation.

Material & Corrosion Resistance

Securing long-term reliability in outdoor environments requires superior metallurgical foundations and advanced surface treatments. We utilize premium high-carbon steel to guarantee exceptional baseline strength for every project.

• Advanced Hot-Dip Galvanization: Every individual wire undergoes a rigorous hot-dip galvanizing process, creating a thick, metallurgically bonded zinc layer. This provides exceptional cathodic protection, ensuring a service life of over five years even in aggressive outdoor, high-wind, or coastal environments.

• Impervious to Harsh Elements: The smooth, sealed surface repels moisture and prevents the ingress of corrosive agents, drastically reducing the risk of hidden internal rust that plagues standard multi-strand ropes.

• Optional Polymer Coatings: For projects situated in extreme UV exposure zones or highly corrosive chemical environments, we offer custom PVC or PE extruded coatings. This additional jacket acts as an impenetrable shield, further extending the operational lifespan and protecting adjacent equipment from abrasion.

• Stainless Steel Alternatives: When absolute corrosion immunity is required for specialized architectural or marine applications, we provide full stainless steel variants engineered to the exact same dimensional tolerances.

Structure & Mechanical Properties

Engineers and procurement teams require precise, reliable data to ensure structural integrity. Our single-strand ropes deliver exceptional mechanical metrics tailored for specific tensioning and support requirements.

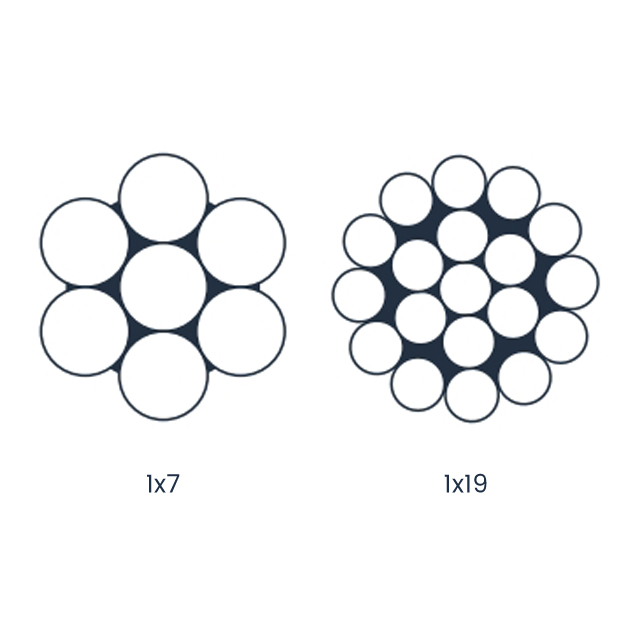

• 1x7 Configuration for Maximum Rigidity: Comprising 7 thicker wires, this structure is the ultimate choice for static loads. It delivers an immense tensile strength ranging from 1670 MPa to 2160 MPa, effectively eliminating stretch and sway in fixed installations.

• 1x19 Configuration for Controlled Flexibility: Utilizing 19 slightly thinner wires, this variant introduces a calculated degree of flexibility. It can safely navigate large-diameter pulleys (≥30x rope diameter) while maintaining an incredibly high breaking load.

• Superior Breaking Load Capacity: Engineered to withstand extreme forces, a standard 10mm 1x7 rope achieves a minimum breaking load of 380 kN. This allows for a highly secure safe working load of 76 kN under a strict 5:1 safety factor.

• Uniform Stress Dispersal: The geometric perfection of the twisting process ensures zero internal gaps. This solid core prevents deformation under crushing loads, maintaining a perfect circular cross-section throughout its lifecycle.

Compliance & Quality Control

Mitigating risk is the top priority for any industrial project. We subject our wire ropes to an exhaustive quality assurance matrix to guarantee flawless performance and strict regulatory alignment.

• Strict International Standard Adherence: Every batch is manufactured in absolute compliance with ASTM A475, DIN 3060, and ISO 9001 specifications, ensuring seamless integration into global engineering projects.

• Comprehensive Material Traceability: We provide complete Mill Test Certificates (EN 10204 3.1) with every shipment. You receive exact chemical composition and mechanical testing data, ensuring total transparency for your safety audits.

• Independent Third-Party Verification: To further validate our internal testing, our products regularly undergo rigorous assessments by internationally recognized testing bodies such as SGS and TUV.

• Continuous Batch Testing: From raw rod to finished spool, we conduct continuous tensile, torsion, and zinc coating weight tests. This relentless scrutiny guarantees that every millimeter of rope meets your exact safety parameters.

Application Scenarios

Selecting the correct strand configuration is critical for operational success. Our products are meticulously engineered to dominate specific industrial and structural applications.

Fixed Structural Supports (1x7 Configuration)

• Telecommunication Towers: The extreme rigidity prevents wind-induced sway, keeping sensitive antennas perfectly aligned and operational during severe weather events.

• Bridge Cable Stays: Capable of supporting immense structural loads (up to 50 tons), providing unyielding tension and stability for large-scale infrastructure projects.

• Utility Pole Guy Wires: Delivers decades of stable, stretch-free support for critical electrical transmission networks, reducing the need for periodic re-tensioning.

• Semi-Fixed Mechanical Uses (1x19 Configuration)

• Heavy-Duty Garage Doors: The slight flexibility allows for smooth, repetitive spooling on lifting drums without suffering from premature metal fatigue.

• Marine Rigging: Ideal for small boat standing rigging where a precise balance of high strength and moderate bendability is required.

• Manual Winch Systems: Performs flawlessly under light to medium loads (≤5 tons), resisting the kinking and deformation that destroys softer ropes during manual operation.

Customization & Fittings

Streamlining your supply chain means receiving components that are ready for immediate deployment. We offer comprehensive customization to match your precise engineering blueprints perfectly.

• Precision Cut-to-Length Services: Eliminate on-site cutting hazards and labor costs. We deliver ropes pre-cut to your exact dimensional tolerances, ready for immediate installation upon arrival.

• Ready-to-Deploy Assemblies: We provide complete wire rope assemblies fitted with premium hardware. Choose from a vast inventory of pressed sleeves, thimbles, heavy-duty shackles, and turnbuckles to create a plug-and-play solution.

• Specialized Protective Jackets: Beyond standard galvanization, we can extrude custom-colored PVC, PE, or PU coatings. This not only enhances corrosion resistance but also provides color-coding for safety and aesthetic integration.

• Tailored Strength Profiles: Depending on your specific safety factors, we can adjust the carbon content and drawing process to hit specific tensile strength targets precisely within the 1670-2160 MPa range.

Packaging & Delivery

Industrial procurement demands flawless logistics and material protection. We engineer our packaging to ensure your rigging materials arrive in pristine condition, ready for immediate heavy-duty use.

• Heavy-Duty Industrial Spools: For large-scale projects, we utilize robust, fumigation-free wooden reels or high-impact plastic spools. These are designed to withstand rough transit and integrate seamlessly with site unwinding equipment.

• Moisture-Barrier Wrapping: Every reel is tightly sealed with advanced waterproof membranes and desiccants, completely neutralizing the threat of transit-induced oxidation or moisture damage during ocean freight.

• Coiled Configurations for Agility: For smaller diameter ropes or specific site requirements, we offer tightly bound, self-supporting coils that are easy to handle, transport, and store in confined spaces.

• Optimized Production Lead Times: Operating as a direct manufacturer allows us to bypass intermediaries. This translates to highly flexible minimum order quantities and accelerated delivery schedules, keeping your critical projects on track.

Why Choose Us

Partnering with a dedicated manufacturer transforms your procurement process from a logistical challenge into a strategic advantage, ensuring you receive premium materials on time and on budget.

• Direct-from-Factory Economics: By eliminating middlemen, we provide highly competitive pricing structures for volume sourcing, maximizing your project's budgetary efficiency without compromising on safety.

• Decades of Metallurgical Expertise: Our engineering team possesses deep knowledge in high-carbon wire drawing and stranding, ensuring every product represents the pinnacle of modern material science.

• Scalable Production Capacity: Whether you require a single specialized assembly or miles of continuous guy wire for a national grid project, our advanced manufacturing lines scale instantly to meet your demand.

• Responsive Technical Support: We don't just supply metal; we supply engineered solutions. Our technical support team is available to assist with load calculations, configuration selection, and custom fitting design.

FAQ

• Can the 1x7 steel wire rope be utilized for dynamic lifting operations?

  No. The 1x7 configuration is engineered specifically for maximum rigidity and dimensional stability. Its extremely stiff nature makes it entirely unsuitable for dynamic bending over sheaves, such as in crane hoists or elevator systems. For semi-dynamic applications, the 1x19 is preferred, while full dynamic lifting requires highly flexible multi-strand ropes (e.g., 6x19 or 6x36 configurations).

• What is the precise breaking load of a 10 mm 1x7 rope?

  When manufactured with a high-tensile strength of 2160 MPa, a 10 mm 1x7 rope yields a minimum breaking load of 380 kN. When applying a standard 5:1 safety factor for fixed structural supports, this translates to a highly reliable safe working load of 76 kN, making it exceptionally secure for heavy-duty tensioning.

• How does the single-strand design prevent internal wear and tear?

  Standard multi-strand ropes consist of several bundles twisting over a central core, creating internal friction points where strands constantly rub against each other under tension. The 1x7 and 1x19 ropes consist of a single bundle of wires nested perfectly together. This eliminates inter-strand gaps and friction, ensuring the load is distributed uniformly and reducing the risk of internal wire breakage by approximately 35%.

• What measures are taken to prevent corrosion during prolonged outdoor exposure?

  Our primary line of defense is a heavy-duty hot-dip galvanization process that metallurgically bonds a thick zinc layer to the steel, offering over 5 years of robust protection in harsh environments. For extreme conditions, such as coastal marine environments or high-UV desert areas, we highly recommend adding our custom PVC or PE extruded coatings to create an impenetrable environmental barrier.

• Are material test reports provided with bulk shipments?

  Absolutely. We deeply understand the critical nature of compliance and traceability in structural engineering. Every shipment is accompanied by a comprehensive Mill Test Certificate (EN 10204 3.1), detailing the exact chemical composition, tensile strength, breaking load, and zinc coating weight, ensuring your project seamlessly passes all regulatory safety audits.
