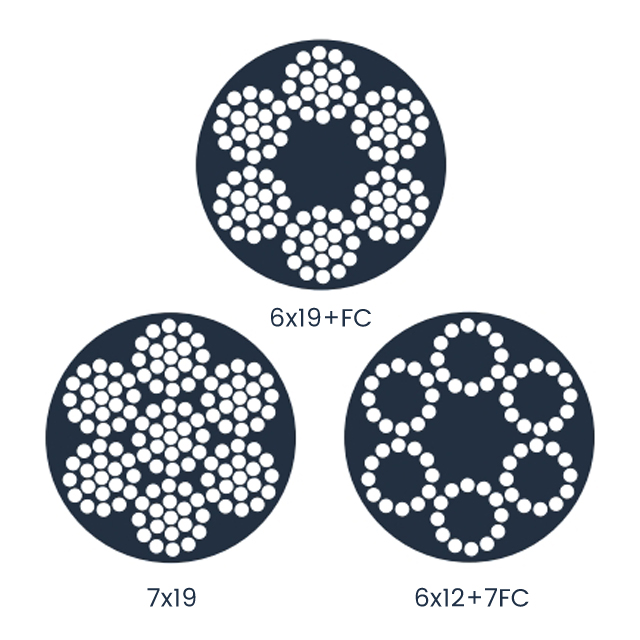

Steel wire rope systems are engineered to carry immense loads, but they are not static entities. Whether employed in architectural rigging, structural bracing, or high-cycle elevator steel wire rope applications, these cables inevitably experience slack. This occurs due to initial construction stretch, long-term load settling, or thermal expansion and contraction. Without a mechanism to compensate for these changes, the system loses integrity, leading to unsafe vibrations, reduced load capacity, or catastrophic failure.
The solution lies in the correct application of a turnbuckle. Often dismissed as simple hardware, this device is actually the primary tension-control instrument in a rigging assembly. It allows operators to adjust the length of a line incrementally, applying precise tension without twisting the cable itself. However, selecting the wrong unit can introduce a critical weak point into an otherwise robust system.
This guide moves beyond basic definitions. We explore ASME-compliant selection criteria, Total Cost of Ownership (TCO) regarding material choices, and the specific installation protocols necessary to prevent system failure. You will learn how to match hardware capacity to your cable and ensure long-term safety.
System Compatibility: A wire rope turnbuckle is often the limiting factor in a rigging assembly’s Working Load Limit (WLL); proper sizing is crucial to avoid creating a "weakest link."
End Fitting Logic: Selection between Jaws, Eyes, and Hooks is dictated by the permanence of the connection and the risk of accidental detachment (Side-loading risks).
Material ROI: Stainless steel (316) prevents corrosion in marine environments but requires anti-seize lubrication to prevent thread galling; galvanized steel offers lower upfront costs for general industrial use.
Safety Standards: Compliance with ASME B30.26 requires specific identification markings and installation protocols (e.g., thread engagement checks) to remain serviceable.
Understanding the mechanics of tensioning hardware is the first step toward safe rigging. A turnbuckle is not merely a threaded rod; it is a mechanical device designed to draw two points closer together with high force and precision.
The defining feature of this device is its counter-rotating thread mechanism. The body features right-hand threads on one end and left-hand threads on the other. When you rotate the body, both end fittings screw in or out simultaneously. This mechanical action is critical. It allows you to adjust tension without twisting the attached steel wire rope. If a standard screw were used, the rotation would transfer torque into the cable, causing it to unlay or kink, which significantly reduces its breaking strength.
According to ASME B30.26 standards, the assembly consists of a body, two end fittings, and optional locking hardware. The choice of body style affects both functionality and inspection capabilities.
Open Body: This is the traditional industrial standard. The central frame is open, allowing inspectors to visually verify how far the threaded ends have penetrated the body. This visibility is essential for confirming full thread engagement during safety audits.
Pipe (Closed) Body: These feature a cylindrical body that completely encloses the threads. While they offer a sleek aesthetic preferred in architectural cable railings, they hide the threads. This makes visual safety inspections more difficult without disassembly or specialized gauges.
Jam Nuts: In environments subject to vibration—such as engines, bridges, or active machinery—turnbuckles can vibrate loose over time. Jam nuts are threaded against the body to lock the assembly in place.
Selecting the correct size involves two distinct measurements. First is the thread diameter. This is the primary determinant of the Working Load Limit (WLL). A thicker diameter equates to higher tensile strength. Second is the take-up length. This represents the total range of adjustment available to absorb slack. A decision error here is common. You must always select a take-up length that exceeds the expected stretch of the rope. If the device runs out of thread before the line is tight, the entire assembly must be re-rigged.
The interface between your tensioning device and the anchor point is often the site of failure. The end fittings must be chosen based on the permanence of the connection and the specific risks of the environment. Mixing incorrect fittings can lead to accidental detachment.
| End Fitting Type | Best Use Case | Safety Profile |
|---|---|---|
| Jaw (Clevis) | Connecting to fixed anchor points like pad eyes, eye bolts, or drilled plates. | High. The bolt or pin closure creates a captive connection. It cannot accidentally detach, making it the superior choice for critical rigging. |
| Eye End | Inline tensioning where the turnbuckle connects to a removable component like a shackle or quick link. | Medium. Secure, but requires an intermediate opening component to connect to a fixed loop. |
| Hook End | Temporary, non-overhead, light-duty applications (e.g., garden fencing). | Low. Lacks a safety latch. If tension releases suddenly, the hook can drop off the anchor. Never use for overhead lifting. |
| Toggle Jaw | Stainless steel architectural rigging and angled installations. | Specialized. Allows for "articulation" (angle adjustment). This prevents work-hardening the wire rope at the swage point due to bending. |
The Jaw end, often called a clevis, features a U-shaped opening secured by a bolt and nut or a pin. This is the gold standard for connecting to fixed anchor points. Because the pin passes through the anchor eye, the connection is physically locked. For permanent installations, use a bolt with a nut and cotter pin. For temporary setups, a clevis pin with a hairpin clip allows for faster removal.
Eye ends are solid loops. They are excellent for inline tensioning but have a limitation: they cannot connect directly to another closed loop. You must use a shackle or a quick link as an intermediary. They are incredibly durable because the solid loop has no moving parts to fail, provided the connecting hardware is rated correctly.
Hooks present a significant risk profile. They rely entirely on tension to stay connected. If a gust of wind or a load shift causes the line to go slack momentarily, a hook can slip off its anchor point. Consequently, industry standards strictly limit hooks to non-critical, non-overhead applications where a drop poses no safety threat.
The environment dictates the material. Using the wrong metal can lead to rapid corrosion or unexpected mechanical seizure.
For most industrial lifting and structural applications, hot-dip galvanized steel is the standard. The drop-forging process aligns the metal grain structure, providing superior tensile strength and fatigue resistance compared to cast or welded parts. While galvanized coatings provide a robust zinc barrier against rust, they will eventually corrode in saltwater environments. However, the cost-to-strength ratio makes them ideal for inland construction and heavy hauling.
When aesthetics or extreme corrosion resistance are required, Grade 316 stainless steel is the material of choice. It is the default for marine rigging and architectural turnbuckle with wire rope assemblies. It resists pitting even in high-chloride environments.
There is a critical implementation risk with stainless steel known as galling, or cold welding. Under high pressure, the oxide layer on stainless threads can scrape off, causing the metals to fuse together permanently. Once galled, the turnbuckle locks up and must be cut off. To prevent this, you must apply a high-quality anti-seize lubricant containing molybdenum disulfide or nickel before tensioning.
The method of manufacture matters as much as the material. Drop-forged bodies offer superior structural integrity. In contrast, formed or welded eyes—often found on cheap hardware store units—can open up or crack under heavy cyclic loading. For any load-bearing application, ensure the specification calls for drop-forged components.
A common rigging error is assuming the turnbuckle has the same strength as the wire rope it tensions. Frequently, this is not the case.
Turnbuckles often have a lower Working Load Limit (WLL) than the steel wire rope attached to them. For example, a 3/8-inch wire rope might have a breaking strength of 14,400 lbs, while a standard 3/8-inch turnbuckle might only be rated for 1,200 lbs WLL. If you simply match the diameters, you create a dangerous bottleneck in capacity.
The decision framework here is to "up-size" the hardware. It is standard practice to use a larger turnbuckle (e.g., 1/2-inch or 5/8-inch) on a smaller cable to ensure the hardware's capacity matches or exceeds the rope's capabilities. Always consult the manufacturer’s load tables rather than relying on nominal trade sizes.
How the turnbuckle attaches to the wire impacts both cost and appearance.
Swage Turnbuckles: These fittings are permanently crimped onto the wire using a hydraulic press. They offer the sleekest profile and are tamper-proof. However, they require precise measurement beforehand, as they cannot be adjusted once swaged.
Swageless (Mechanical) Fittings: These are field-installable options, such as push-lock sockets or cone-and-wedge designs. They require no crimping tools, making them ideal for onsite repairs or DIY architectural projects. While the unit cost is higher, the savings in labor and tooling often justify the expense.
Every industry mandates a safety factor. For general rigging, a 5:1 ratio is standard. This means the hardware must theoretically hold five times the working load before failing. Elevator systems often require higher factors (up to 10:1). You must ensure the chosen turnbuckle meets the design factor required by your specific application, not just the static load weight.
Even the highest-rated hardware will fail if installed incorrectly. Following ASME B30.26 protocols ensures the assembly performs as predicted.
Before attaching the device to the wire, unscrew the end fittings to their full extension. This provides the maximum "take-up" or adjustment range. If you start with the body halfway closed, you may run out of adjustment room before the line is fully tensioned. As mentioned previously, if using stainless steel, apply anti-seize lubricant to the threads at this stage.
Routine inspection is mandatory for safety. Look for these specific removal criteria:
Thread Engagement: The threaded ends must not be unscrewed too far. Ensure full engagement inside the body. Open-body styles allow you to verify this visually; you should see the thread passing through the nut portion of the body.
Visual Checks: Inspect for heat damage, such as welding spatter, which alters the metal's heat treatment. Look for deformation—if the body is bent or the eyes are elongated, the unit has been overloaded and must be discarded.
Identification: ASME standards require manufacturer markings and WLL stamps to be legible. If corrosion has worn these off, the wire rope turnbuckle should be removed from service because its capacity can no longer be verified.
Dynamic environments cause rotation. If a turnbuckle is not locked, vibration will eventually unscrew it. Jam nuts are effective but can damage threads if over-tightened. A more secure method for critical rigging is "mousing" (safety wiring), where a wire is looped through the turnbuckle body and the end fitting to physically prevent rotation.
A turnbuckle is not a generic commodity; it is a precision instrument for tension management that dictates the safety of the entire system. Successful deployment depends on three pillars: matching the WLL to the steel wire rope capacity, selecting the correct end fitting (Jaw, Eye, or Toggle) for the anchor point, and strictly adhering to installation best practices regarding anti-seize and thread engagement.
Whether you are securing a suspension bridge or a simple railing, the hardware must be treated with the same respect as the cable itself. Implement a routine inspection schedule today to check for deformation, corrosion, and thread security. A proactive approach effectively prevents failure.
A: Turnbuckle size is defined by two metrics: the thread diameter and the take-up length (e.g., 1/2" x 6"). It is not measured by the overall length of the device. The thread diameter determines the load capacity, while the take-up length indicates how much slack the device can absorb. Always reference these two numbers when ordering replacements.
A: It is generally advised against. Mixing metals creates a galvanic cell, leading to accelerated corrosion of the galvanized part (the anode) in the presence of moisture. While possible in dry, climate-controlled interiors, it is dangerous in outdoor or marine environments. Always match materials—stainless with stainless—to ensure longevity.
A: The difference is primarily visibility and aesthetics. An open body allows for visual inspection of the internal thread engagement, making it the preferred choice for industrial lifting and rigging where safety checks are frequent. Closed body (pipe) turnbuckles shield the threads for a cleaner look, making them popular for architectural applications like cable railings.
A: A turnbuckle can apply significantly more force than a human can by hand, but it is limited by its Working Load Limit (WLL). You should never use "cheater bars" or long wrenches to over-torque the device, as this can strip threads or deform the body. Tighten until the required system tension is reached, ensuring you stay well within the WLL.
