Steel wire rope systems inherently stretch over time or require precise initial tensioning to function safely. A static connection cannot accommodate these adjustments, which eventually leads to slack and compromised structural integrity. This lack of adjustability creates a significant safety hazard in critical rigging and architectural applications. To solve this, engineers rely on dynamic hardware capable of modifying length under load.
The turnbuckle serves as this essential solution. It functions not merely as a connector, but as a mechanical advantage device that converts rotational force into linear tension. By understanding the physics behind the threads, operators can maintain system stability without dismantling the assembly. This capability is vital for longevity and safety in industrial environments.
We will define the scope of this hardware, moving beyond basic definitions to the engineering reality. You will learn how to match turnbuckle ratings to steel wire rope capabilities to prevent system failure. We will also cover compliance standards and the specific risks associated with improper material selection.
Contra-Rotating Mechanics: Tension is generated by opposing right-hand and left-hand threads pulling end fittings together simultaneously without twisting the rope.
The Weakest Link Rule: A turnbuckle’s Working Load Limit (WLL) is often lower than the breaking strength of the attached steel wire rope; sizing must be based on WLL, not just diameter.
Material Compatibility: Mismatched metals (e.g., galvanized rope with stainless hardware) can lead to galvanic corrosion; proper selection impacts Total Cost of Ownership (TCO).
Installation Integrity: Prevents torque transfer is critical—spinning the body, not the end fittings, ensures the wire rope structure remains intact.
A turnbuckle operates on a principle of opposing forces. While it looks like a simple link, the internal engineering provides a significant mechanical advantage. Understanding this mechanism helps operators apply tension correctly without damaging the attached cabling.
The core of a turnbuckle is its central body. One end features standard right-hand threads, while the opposite end utilizes left-hand threads. This specific configuration is not a manufacturing quirk; it is the physical requirement for linear contraction.
When you rotate the body, the internal threads engage both end fittings simultaneously. This action draws the fittings inward to shorten the assembly or pushes them outward to lengthen it. Engineers call this the "take-up." It allows for micro-adjustments in tension, enabling you to remove millimeters of slack from a turnbuckle wire rope assembly without disconnecting any hardware.
Operators must distinguish between applying tension (linear force) and applying torque (rotational force). The goal is to tighten the line, not to spin it. If the end fittings rotate along with the body, the rotational force transfers directly into the wire rope.
This transfer is dangerous. Twisting a standard right regular lay rope can unlay the strands, permanently damaging the rope's structural integrity. Critical operational protocols dictate that end fittings must remain stationary. You rotate the body, but you hold the fittings. This isolation ensures the wire rope structure remains intact while the system tightens.
The thread pitch determines the force multiplier of the device. Finer threads allow for higher tension adjustments with less manual input. This mechanical advantage means a human operator can generate thousands of pounds of tension using only a simple wrench. However, this power also increases the risk of over-tightening, which can strip threads if not monitored.
Selecting the right hardware requires more than matching sizes. You must analyze the load ratings of every component. The turnbuckle is often the limiting factor in a rigging assembly.
Industry standards typically dictate a Safety Factor of 5:1 for overhead lifting. This means the Working Load Limit (WLL) is one-fifth of the breaking strength. You must adhere to this decision framework strictly. Unlike wire rope, which often has a reserve strength and gives visual warning signs before failure, turnbuckle threads can strip or deform instantly if the WLL is exceeded.
The table below illustrates the difference in behavior between materials under excessive load:
| Component | Overload Behavior | Failure Mode | Typical Safety Factor |
|---|---|---|---|
| Steel Wire Rope | Elongation, wire breaks | Gradual strand failure | 5:1 |
| Forged Steel Turnbuckle | Deformation (stretching) | Yielding before fracture | 5:1 |
| Malleable Iron Turnbuckle | Minimal deformation | Sudden brittle fracture | 4:1 (Not for lifting) |
A common procurement error involves equating thread diameter with rope diameter. A 1/2-inch turnbuckle fitting does not necessarily possess the same load capacity as a 1/2-inch EIPS wire rope. In many cases, the hardware is weaker.
To ensure safety, use the "Equivalent Strength" logic. You may need to upsell the turnbuckle size—for instance, using a 5/8-inch turnbuckle for a 1/2-inch rope—to match the system’s capacity. Always reference load charts from standards like ASTM F1145 or FF-T-271 rather than guessing based on physical dimensions.
The application determines the required material grade. Static loads, such as guy wires or architectural stays, have different requirements than dynamic lifting operations. For dynamic lifting, forged steel is mandatory. Forging aligns the metal grain structure, providing superior resistance to fatigue and shock loading. Malleable iron is restricted to static, non-critical loads because it lacks this fatigue resistance and can shatter under impact.
The connection point between the turnbuckle and the anchor determines the system's versatility. Choosing the wrong end fitting can introduce dangerous side loads or limit articulation.
Different fittings solve different connection problems:
Jaw (Clevis): This fitting features a bolt and nut assembly. It is best for connecting to fixed eyes or situations requiring multi-directional articulation. The jaw allows the turnbuckle to toggle, reducing bending stress.
Eye: The eye is the standard for straight-line pulls. It is typically used with shackles. The solid loop provides a secure, permanent connection point that cannot accidentally detach.
Hook: Hooks present a high risk of detachment. If the line becomes slack, a hook can slip off its anchor. Consequently, hooks are generally not recommended for critical safety rigging or permanent turnbuckle wire rope installations where tension might fluctuate.
Environmental factors dictate material selection. Galvanized steel offers high tensile strength and lower cost, making it ideal for industrial rigging where moisture is minimal. However, in marine or high-chloride environments, stainless steel (specifically 316 grade) is essential. It prevents rust but generally has lower tensile strength than high-carbon steel. You must factor this strength reduction into your WLL calculations.
Mixing metals invites galvanic corrosion. Connecting a stainless steel turnbuckle directly to a galvanized wire rope creates a battery effect in the presence of an electrolyte (like saltwater). The galvanized zinc acts as an anode and corrodes rapidly. To protect your investment and Total Cost of Ownership (TCO), use isolation barriers or intermediate fittings (like a compatible shackle) to separate mismatched metals.
Proper installation ensures the turnbuckle functions as a tensioner rather than a weak point. Following a strict protocol prevents common failures such as thread seizure or rope unlaying.
Before connecting any hardware, inspect the threads for damage or debris. Ensure the turnbuckle is fully extended (unscrewed) before installation. This maximizes the "take-up" potential, giving you the most room to tighten the system once connected.
Alignment is critical. The turnbuckle must experience a straight-line pull. Side loading—where force is applied at an angle to the body—introduces bending stresses that these devices are not designed to handle. Verify that the end fittings articulate freely on their anchor points. If the fitting binds, it will bend the rod, significantly reducing its load capacity.
Once connected, follow these steps to apply tension safely:
Anti-Seize Application: If using stainless steel, apply a molybdenum or nickel-based lubricant to the threads. This prevents "galling," a form of cold welding that permanently seizes the threads under pressure.
Torque Management: Apply a wrench to the turnbuckle body only. Do not turn the eye or jaw. If necessary, hold the end fittings with a separate tool to prevent them from spinning.

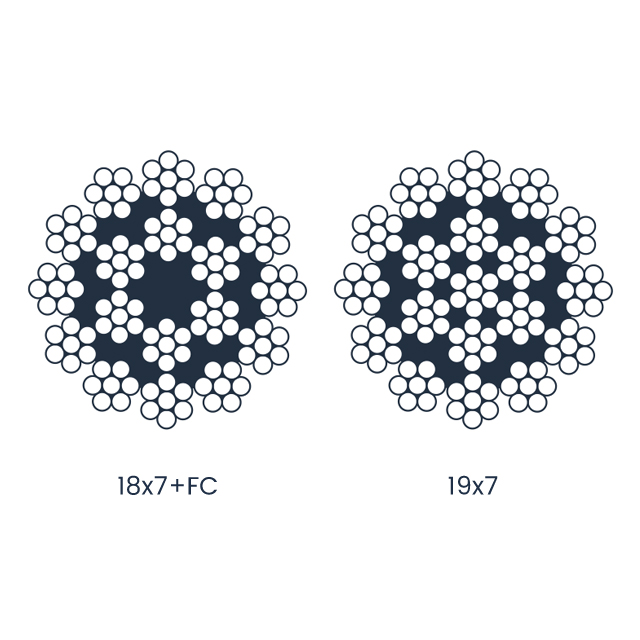

Use with Non-Rotating Rope: Exercise specific caution when using non-rotating steel wire rope. This rope is designed with opposing layers of strands to prevent rotation under load. Transmitting torque into this rope type can destroy its delicate rotational balance, causing internal structural failure. Ensure the turnbuckle exerts zero rotational force on the line.
Vibration causes threaded connections to loosen over time. To secure the system, use jam nuts (check nuts) tightened against the body. For critical or high-vibration environments, use safety wiring (mouse lines). Loop the wire through the turnbuckle body and the end fittings to physically prevent the body from rotating back.
Turnbuckles are consumable items in rigorous environments. Regular inspection ensures they remain safe for use. You must know when to retire a component.
Define clear criteria for a "fail" during inspection. Look for cracked bodies, particularly at the weld points or thread roots. Check for bent threads or elongation of the eye/jaw. Elongation indicates the metal has been stretched beyond its yield point and has lost its structural elasticity. Immediate replacement is required.
Never apply heat to straighten a bent turnbuckle. Heating high-strength steel alters its metallurgy, often making it brittle. This unauthorized modification ruins the WLL rating and renders the device non-compliant. If it is bent, it is scrap.
Visual safety checks should focus on thread engagement. Ensure a sufficient length of the threaded rod is inside the body. Seeing internal threads exposed outside the body often indicates the device is over-extended. At minimum, the length of thread engagement should equal the diameter of the thread.
Establish a maintenance schedule for re-applying lubricant. Grease protects the threads from corrosion and ensures future adjustability. A seized turnbuckle cannot be tensioned or loosened safely, often necessitating cutting the wire rope to remove it.
A turnbuckle is a precision instrument, not just a simple fastener. Its effective interaction with wire rope depends entirely on correct WLL matching, material compatibility, and torque-free installation. Ignoring these engineering principles leads to accelerated wear and catastrophic failure.
For critical applications, always prioritize Drop Forged steel over welded or formed variants. Furthermore, size the turnbuckle to meet or exceed the Breaking Strength of the steel wire rope assembly. This approach maintains a consistent safety factor across the entire system, ensuring that your connection points are never the weakest link.
A: Yes, but only if it is "Drop Forged" steel (Jaw-Jaw or Eye-Eye types). Hook-style turnbuckles are generally prohibited for overhead lifting due to the risk of disengagement. Always verify the manufacturer's rating for lifting specifically.
A: Use "Jam Nuts" tightened against the body, or use safety wire (mousing) looped through the turnbuckle body and end fittings. This is critical in high-vibration environments to prevent the body from backing off.
A: Thread diameter determines the load capacity (strength), while "take-up" refers to the length of the open body window, determining how much slack you can remove from the line. Strength comes from thickness; adjustment comes from length.
A: This is called "galling." It occurs when friction causes the oxide layer to wear off, leading to cold welding. Always use a molybdenum disulfide or nickel-based anti-seize lubricant before tensioning stainless hardware.
A: Not necessarily. The turnbuckle must match the load requirement of the system. Often, the turnbuckle thread diameter needs to be larger than the wire rope diameter to match the rope’s breaking strength.
