The 6x7 FC PVC PP PE PU PA Coated Cable combines a robust 6x7 + FC (fibre core) construction with multi-material coating options for enhanced versatility .
| Quantity: | |
|---|---|

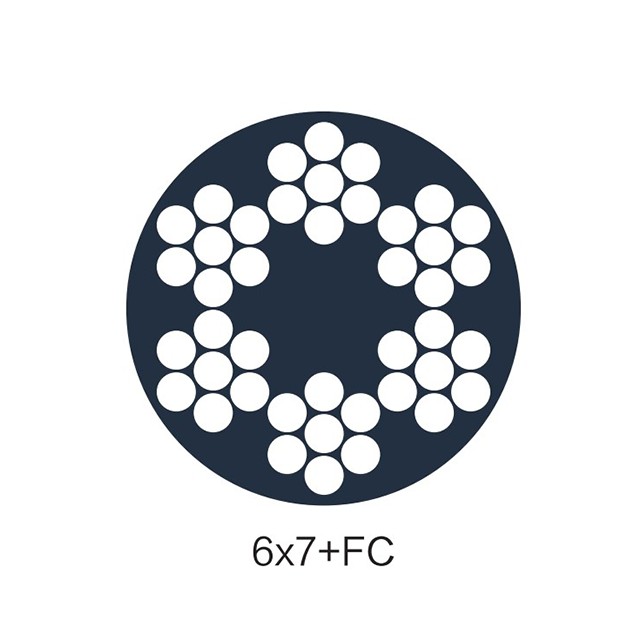

The 6x7+FC Coated Cable is a high-performance steel cable engineered to blend exceptional strength, flexibility, and environmental resilience for diverse industrial, construction, and residential applications. Featuring a robust 6x7+FC (fibre core) construction, this cable combines 6 strands of 7 wires each with a central fibre core, delivering a balanced mix of load-bearing capacity and maneuverability. What sets it apart is its multi-material coating options—PVC coated cable, PP coated cable, PE coated cable, PU coated cable, and PA coated cable—each tailored to specific environmental and functional needs. With a standard diameter range of 3.2-4.0 mm (1/8 to 5/32 inches) and extended options up to 20 mm, it achieves a tensile strength of 1470-2160 MPa, ensuring reliability even under medium loads. Certified to ISO 9001 and ROHS standards, this galvanized steel cable undergoes zinc core treatment to prevent rust, making it suitable for humid, marine, and outdoor environments. Whether for heavy-duty lifting or everyday residential use, the 6x7+FC Coated Cable stands out as a versatile solution that marries durability with adaptability.
| PVC/PP/PE/PU/PA Coated Cable | ||||
| Construction | Diameter(mm) | Unit Weight(kg/100m) | Minimum Breaking Strength(kn) | |
| 1770 | 1960 | |||
| 6x7+FC PVC/PP/PE /PU/PA | 1.5-2.5 | 1.27 | 1.32 | 1.46 |
| 2.0-3.0 | 2.00 | 2.35 | 2.6 | |
| 3.0-4.0 | 4.02 | 5.29 | 5.86 | |
| 3.0-5.0 | 5.04 | 5.29 | 5.86 | |
| 4.0-5.0 | 6.74 | 9.41 | 10.4 | |
| 4.0-6.0 | 8.00 | 9.41 | 10.4 | |
| 5.0-6.0 | 10.18 | 14.7 | 16.3 | |
| 6.0-8.0 | 16.04 | 21.1 | 23.4 | |
| 8.0-10 | 26.95 | 37.6 | 41.6 | |
| Note: Stainless Steel Wire Rope is available. | ||||
The unique strand-and-wire configuration, paired with a central fibre core steel cable, reduces overall weight while absorbing shocks, making the cable flexible enough for tight installations yet strong enough to handle medium loads. This structure ensures consistent performance across repeated use, minimizing fatigue and breakage risks.
Each coating material serves a distinct purpose—PVC coated cable is ideal for general-purpose indoor and light outdoor use, offering cost-effectiveness and basic protection; PU coated cable excels in high-wear scenarios, resisting abrasion and tear in high-friction applications; PA coated cable provides superior chemical resistance, making it perfect for marine and mining environments; PE coated cable delivers exceptional moisture resistance, preventing water penetration and corrosion; PP coated cable is a budget-friendly option for outdoor use, balancing durability and affordability.
The galvanized steel strand core undergoes zinc plating, creating a barrier against rust and corrosion. This treatment extends the cable’s service life significantly, even in humid, coastal, or industrial settings where exposure to moisture and chemicals is common.
Meeting ISO 9001 and ROHS certifications guarantees consistent quality control, ensuring each cable meets strict performance and safety requirements. This compliance makes it a trusted choice for professional and industrial applications worldwide.
The cable supports custom packaging (reels or coils) to suit project-scale needs, from small residential rolls to large industrial spools. Additionally, it offers custom processing such as cutting to specific lengths and twisting, allowing it to fit unique installation requirements without compromising performance.
The 6x7+FC Coated Cable is a reliable workhorse in construction and lifting scenarios. Its fibre core and balanced load capacity make it ideal for rigging slings, winch cables, and elevator control lines. The galvanized core and protective coatings ensure stability and corrosion resistance, even in harsh construction site conditions—from exposure to dust and debris to variable weather. For medium-load lifting applications, its tensile strength (1470-2160 MPa) provides the necessary safety margin, while its flexibility allows for easy handling and installation around machinery and structures.
In residential settings, this cable offers practical and safe solutions. It is perfect for clotheslines, providing durability to support wet laundry without sagging. For recreational use, it serves as a sturdy base for children’s zip-lines, with the fibre core absorbing shocks to enhance safety. Artists and designers often use it for art display hanging, as the smooth coatings (especially PVC and PU) prevent damage to delicate artworks while maintaining a clean aesthetic. Indoor applications like gym equipment rely on PVC coated cable for its non-slip and durable surface, while marine and mining industries benefit from PA coated cable’s chemical and corrosion resistance. It also works seamlessly with common cable accessories—aluminum sleeves, thimbles, clips, and hooks—ensuring secure and hassle-free installations across all use cases.
At a tensile strength of 2160 MPa, the 1/8-inch (3.2 mm) PVC coated cable variant has a minimum breaking load of approximately 48 kN, ensuring reliable performance for medium-load applications.
Standard delivery for customized orders (including custom lengths, packaging, or processing) takes 8-14 days. Expedited shipping options are available for urgent projects, ensuring timely delivery without compromising product quality.
For marine environments—where exposure to saltwater, humidity, and chemicals is high—PA coated cable is the best choice. Its superior chemical and corrosion resistance prevents damage from saltwater and marine debris, extending the cable’s service life in harsh coastal conditions.
Yes, it works seamlessly with common cable accessories such as aluminum sleeves, thimbles, clips, and hooks. This compatibility ensures secure installations, whether for construction lifting, residential use, or specialized applications, without the need for custom fittings.
